Burtons 1 Metre Pond Planter with 600mm Weir
| Brand |
|---|
The Burtons 1 metre Pond Planter combines a planting trough with a broad return weir. It offers a way to keep the main root area outside the pond, where koi have less direct access, while returning water over the 600 mm lip. Choose the planting for the trough’s space and water conditions rather than treating it as an unrestricted garden bed.
£295.00 (inc VAT)
Burtons 1 Metre Pond Planter with 600mm Weir
A planted return above the pond
The Burtons 1 metre Pond Planter combines a planting trough with a broad return weir. It offers a way to keep the main root area outside the pond, where koi have less direct access, while returning water over the 600 mm lip. Choose the planting for the trough’s space and water conditions rather than treating it as an unrestricted garden bed.

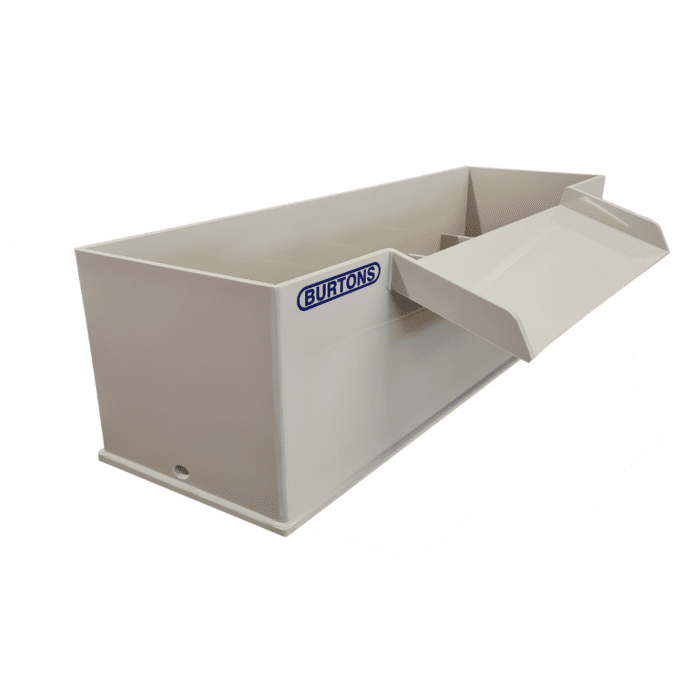

The trough measures 1000 mm long, 300 mm wide and 300 mm high, with a 170 mm weir overhang. These dimensions are useful when planning the position above the pond wall: allow for the projecting outlet as well as the trough itself, and retain access to the connections, planting and weir for routine cleaning.
There is a 1-inch inlet on each side so the feed can be connected from the more convenient direction. The manufacturer includes one hosetail and one blanking cap; the unused side is capped. The two inlet positions are a choice of connection location, not a requirement to run two separate pump feeds.
Burtons specifies a maximum flow of 5,000 litres per hour. That is an upper limit, not a minimum flow or a guarantee that every pump labelled 5,000 will deliver the right return in your installation. Pipe resistance and the lift to the planter affect the actual flow, so plan a controllable supply and check the water return in place.
The base can also hold Burtons FAR media for additional biological filtration, with a stated media capacity of 16 kg. Plants and biological media have different space and maintenance needs, so plan their arrangement before filling the trough. The planter remains part of the pond system; it is not a complete mechanical and biological filter on its own.
Use an appropriately supported, level installation and follow the manufacturer’s fitting guidance for the structure and connections. Keep loose planting material out of the return, leave room to trim roots and test the flow before finishing the display. Roots held outside the pond are less accessible to fish, although any leaves trailing into the water can still be reached.
What you receive
One Burtons 1 metre pond planter with a 600 mm weir, one hosetail and one blanking cap. Plants, biological media, pump and connecting pipework are separate unless the selected offer expressly states otherwise. Check current availability before planning the installation.
Is this planted return right for your pond?
Choose it when you can provide a properly supported raised trough and a clear return over the pond wall. The 1000×300 mm footprint and 170 mm projecting weir need to fit the structure, with access to the planting, side connections and outlet. Plan the full installed position rather than measuring only the trough.
The roots can be held mainly outside the fish area, but trailing leaves may still be reached by fish. Choose suitable plants for the trough’s growing space, water cover and actual light. The planter is part of the system, not a complete stand-alone mechanical and biological filter.
Planning and fitting the return
Arrange level support suitable for the complete filled installation, following the manufacturer’s fitting guidance and obtaining appropriate installation advice where needed. The 300 mm external height is not a universal plant depth or a structural load rating. Retain access to the underside and connections rather than permanently enclosing them before testing.
Use the 1-inch side inlet on the convenient side, with the supplied hosetail, and cap the unused inlet. The two positions provide a choice of connection direction rather than an instruction to connect two pumps. Allow for pipe routing, the lift to the trough and a controlled feed.
Burtons specifies a maximum flow of 5,000 litres per hour. Actual delivered flow depends on pump head and pipe resistance, so a pump’s headline rating is not the return flow. Test the installed supply and weir, checking for leaks and unwanted overflow behind the wall before leaving the system running.
Arranging plants and biological media
Keep suitable aquatic planting medium contained so loose soil cannot wash over the weir into the pond. Use plants whose mature roots, height and preferred water cover fit the trough and leave a clear route for water to reach the outlet. The external dimensions do not remove the need to check each planted crown’s actual water level.
The base can hold Burtons FAR media, with a manufacturer-stated media capacity of 16 kg. That capacity is not the permitted total structural load of the installation. Plan media and plant space together, allowing water movement and access for care; additional biological media does not replace the rest of the pond’s filtration.
Keeping the planter working
- Flow and connections: Check the inlet, cap, hose and return for leaks or restriction, and keep operating flow within the specified maximum. Recheck after cleaning or changing pipework rather than assuming an unchanged pump setting gives the same delivered flow.
- Roots and outlet: Inspect roots, leaves and debris around the 600 mm weir so water can return into the pond as intended. Trim or divide congested planting at a time suited to the species, collecting cut material rather than allowing it to enter the pond.
- Plant care: Feed only as appropriate for the actual plants and growing medium, following aquatic product labels. Remove soft dead growth and keep the planting medium contained without smothering crowns or blocking water movement.
- System maintenance: Keep safe access to the unit and maintain suitable main filtration and aeration for the pond. Test the return after maintenance before finishing covers or leaving it unattended.
Seasonal planting and operation
The plants determine the seasonal appearance and winter needs of the planted trough. Follow their labels and the pond-system/manufacturer guidance for winter operation, checking connections and the return as conditions change. A full summer planting does not establish year-round leaf cover or a frost rating for every plant.
Dimensions and operating details
- Dimensions
- 1000 mm long × 300 mm wide × 300 mm high.
- Weir outlet
- 600 mm wide; 170 mm overhang.
- Inlets
- Two 1-inch side inlet positions; choose one and cap the other.
- Included connections
- One hosetail and one blanking cap, as specified by Burtons.
- Maximum flow
- 5,000 litres per hour; actual delivered flow depends on the system.
- Media capacity
- 16 kg manufacturer rating; FAR media can add biological filtration.
- Installation
- Appropriate level support, accessible connections and a checked return path.
- Filtration role
- Supplementary planted/biological return; not a complete main filter.
Ordering and delivery
Plant growth changes through the year, so inspect the return and remove deteriorating material as needed. Plants, media, pump and pipework are separate unless the selected offer expressly includes them.
Please read our delivery information for delivery arrangements and contact us if you need to check the timing of a particular order.
Planning the planting and feed
aquatic planting soil — Use suitable aquatic medium within a contained planting arrangement, keeping loose material out of the weir.
pond pump sizing guide — Explains head height, pipe resistance and actual delivered flow when planning a raised return.
