Blagdon Pond Air Pump Annual Service Kits

Blagdon Pond Air Pump Annual Service Kits

Genuine diaphragms, valves, seals and filters for Blagdon Pond Oxygenator and Koi Air models

Rubber diaphragms, flapper valves, seals and intake filters are working parts. After long continuous running they can stiffen, split or clog, reducing the air reaching the pond even though the pump still sounds as if it is operating. These genuine Blagdon service kits provide the model-specific wearing parts needed to overhaul compatible Pond Oxygenator and Koi Air pumps.

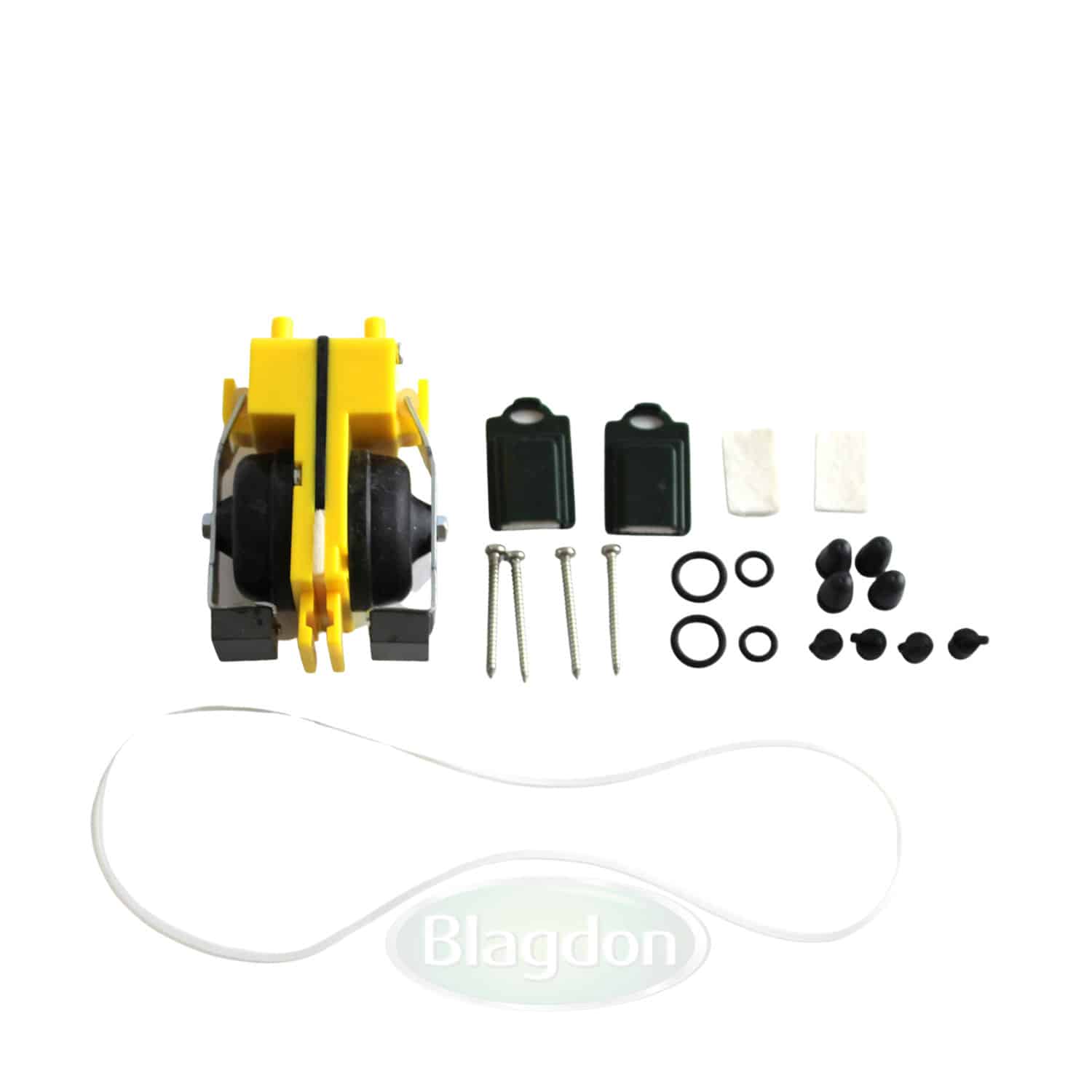

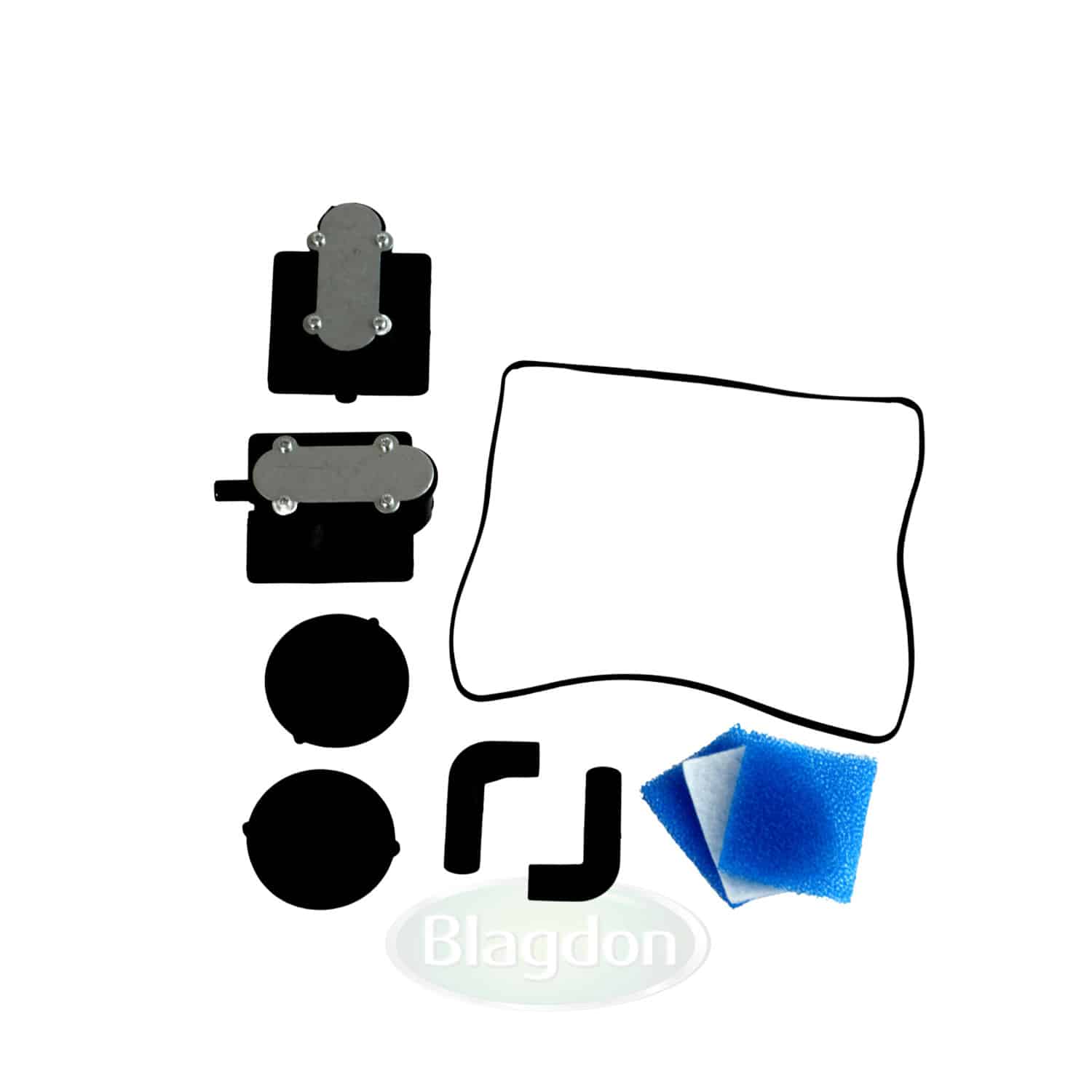

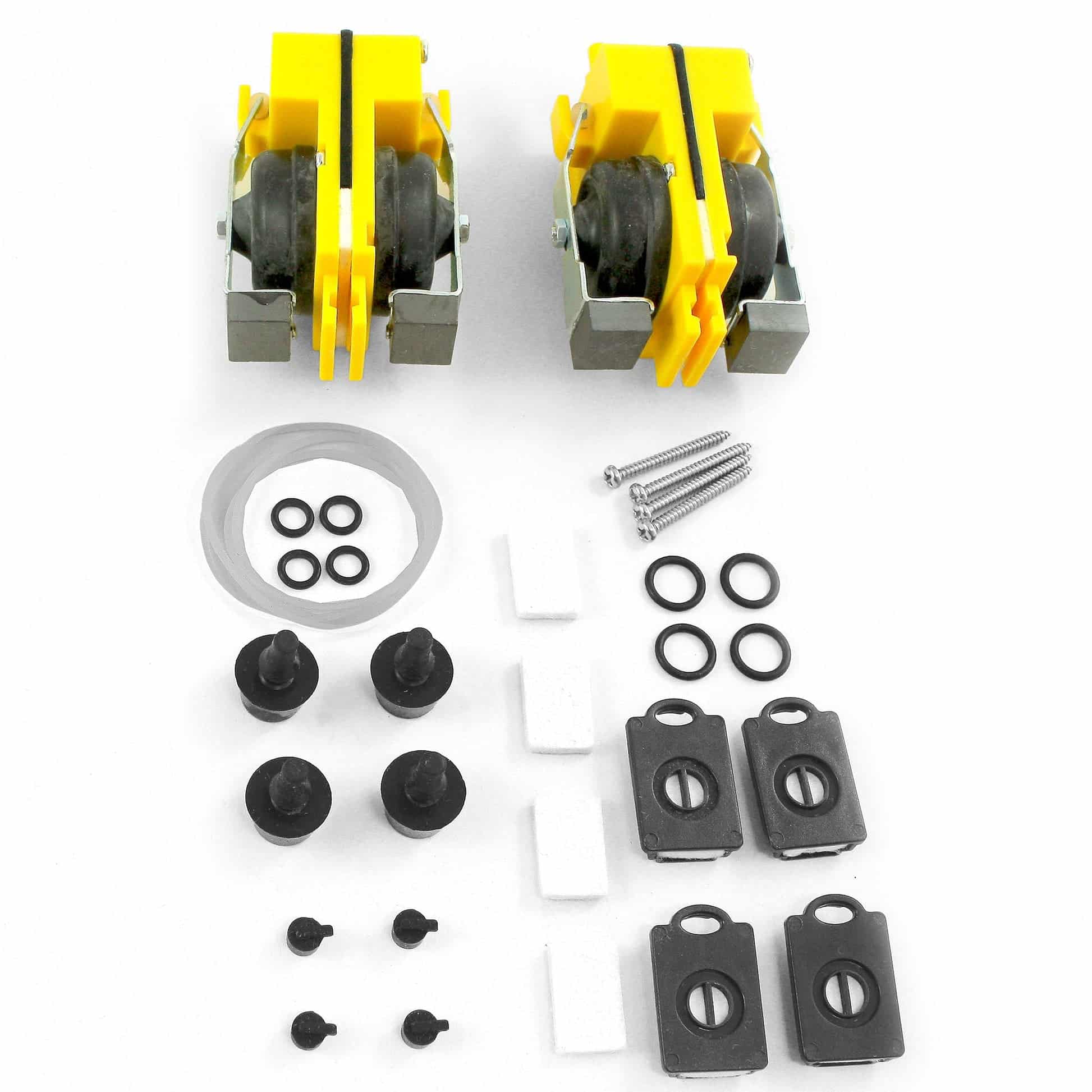

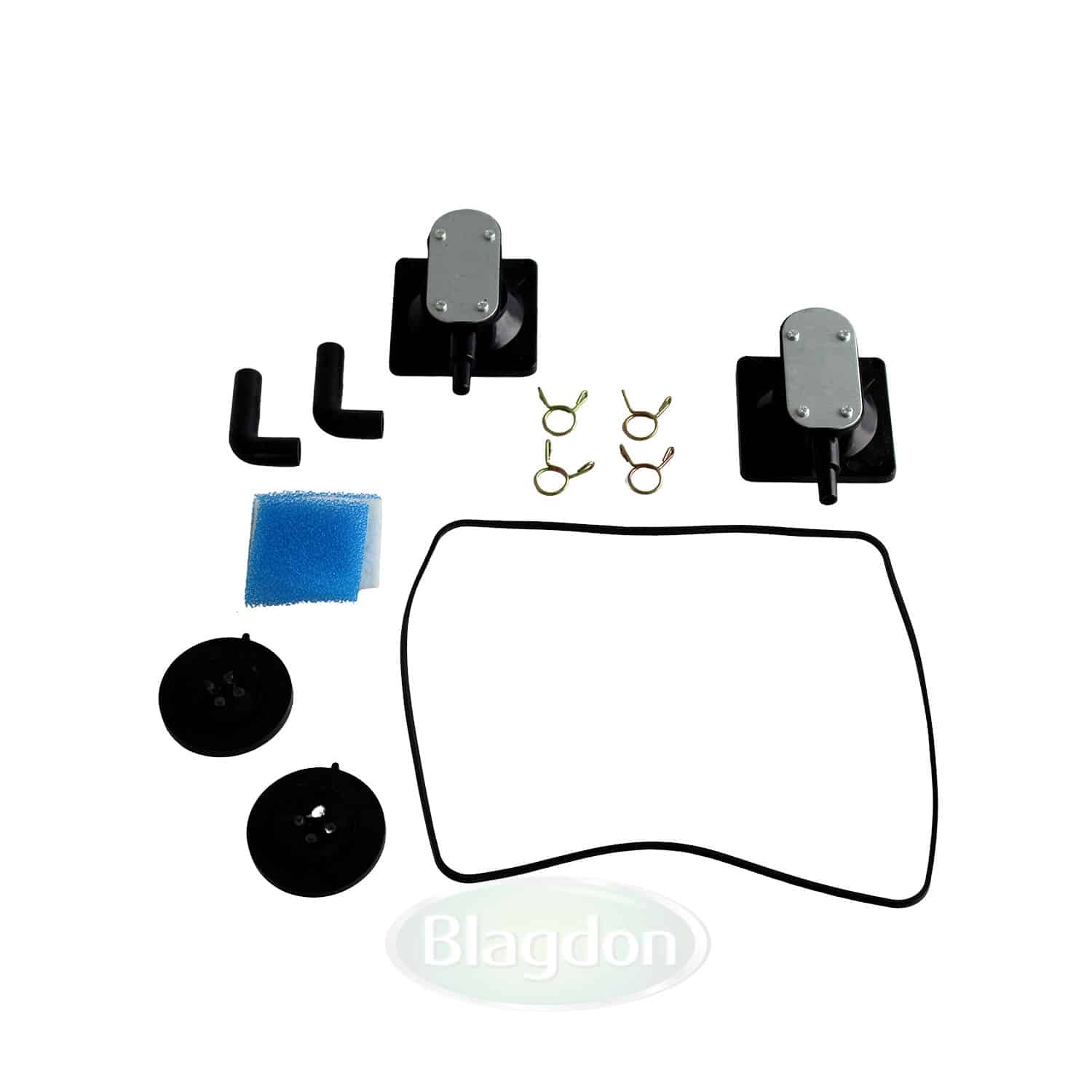

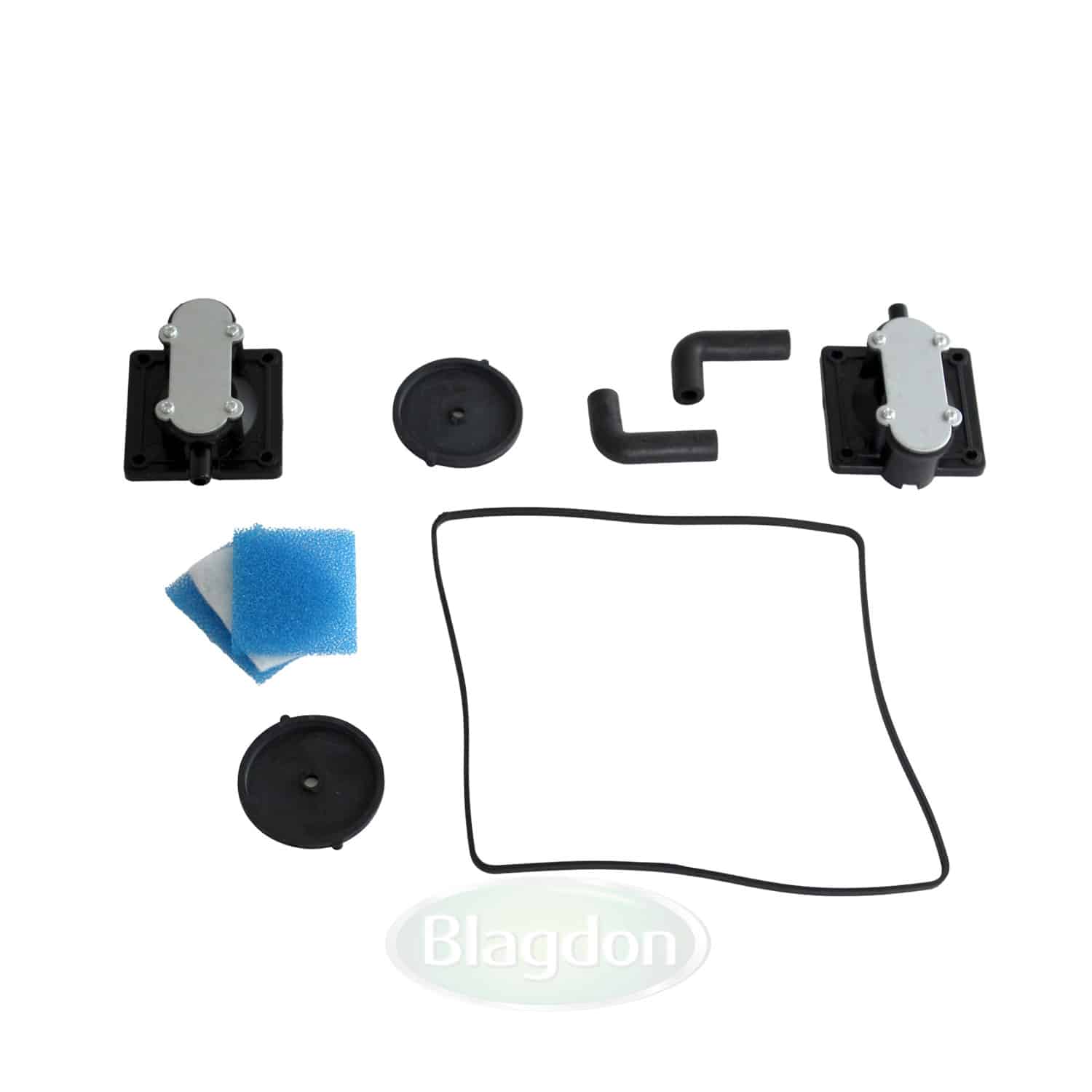

Choose by the exact name and number on the pump label. The 1-, 2- and 4-outlet kits are different from the high-output 1800, 2400 and 3600 service packs, and the Koi Air 25 and Koi Air 50/65 kits are separate designs. Use the Blagdon part numbers below to match your equipment.

Compare the service-kit options

What is included with the Koi Air 25 kit?

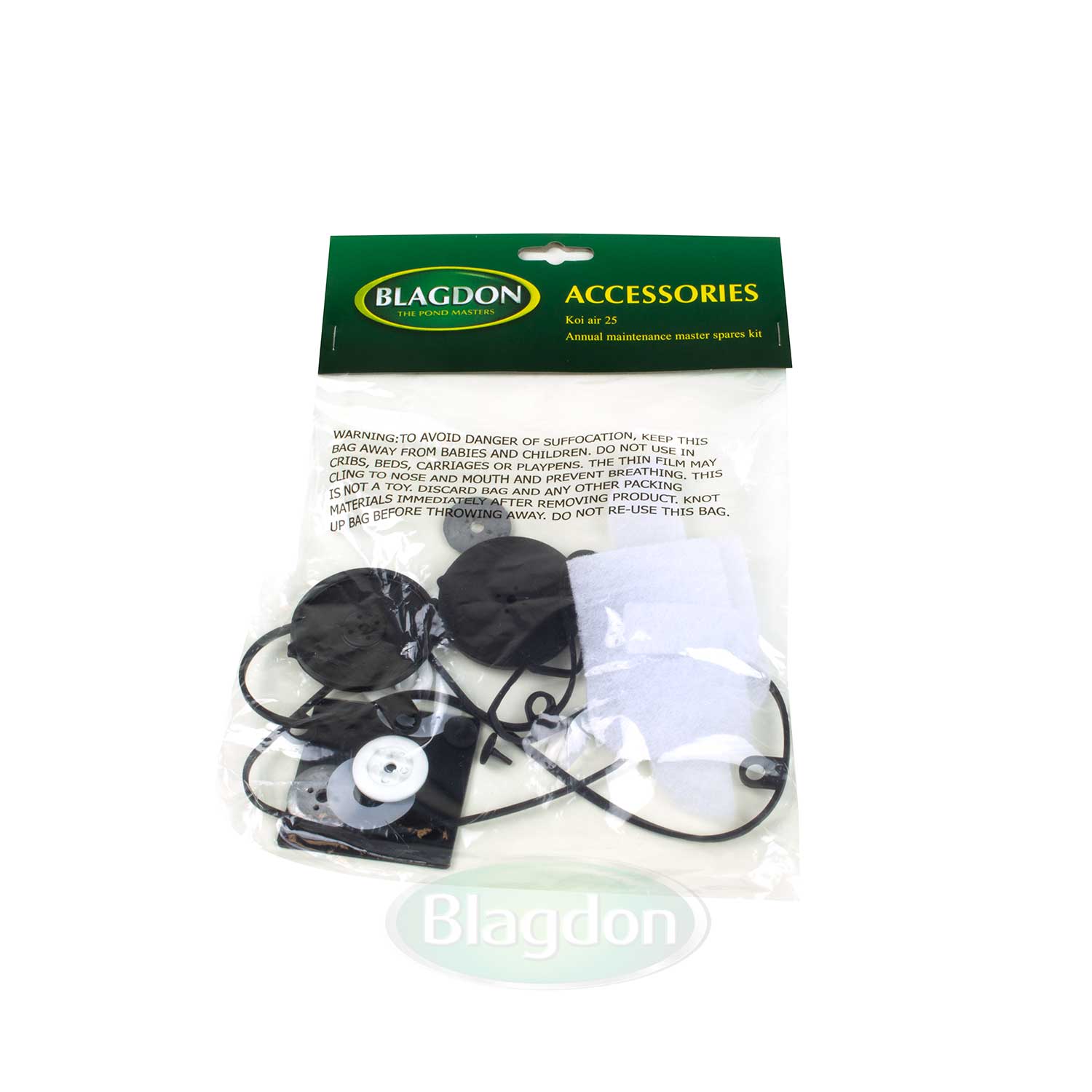

The Koi Air 25 annual maintenance kit is Blagdon part 1019941. The manufacturer lists intake foam seal, intake foam filters, cover seal, outlet seal, two diaphragms, four diaphragm washers and two diaphragm front boards. These are internal service components for the original Koi Air 25 pump. They are not a set of air stones, a manifold or a complete replacement pump.

The Pond Oxygenator 1800 replaced the Koi Air 25 in Blagdon’s pump range, but this does not make their service kits interchangeable. Select the kit for the pump you actually own: Koi Air 25 uses 1019941, while the Pond Oxygenator 1800 uses 1057356. This distinction is particularly useful when an older pump has been retained alongside newer pond equipment.

Check your model label before opening the pack and keep the supplied parts together during servicing. Follow the matching pump manual for assembly order and diaphragm orientation. If the old components differ from the replacement pack, stop and check the equipment and part references before fitting them. Do not force a component to fit or assume an incorrectly seated seal will settle once the pump is running.

Signs an air pump is due for servicing

• Previously active air stones now produce fewer or uneven bubbles.
• Airflow briefly improves when airline or manifold restriction is removed.
• The pump has become louder, harsher or more prone to vibration.
• The intake pad is dirty and the diaphragms have completed a long service interval.
• A visual inspection finds split rubber, distorted valves or tired seals.

Before opening the pump, check the simple external causes: blocked air stones, kinked or waterlogged airline, closed manifold taps and a diffuser placed deeper than the pump can work against. Disconnect the manifold temporarily and test the bare outlet. If output immediately returns, the restriction is downstream rather than inside the pump.

Safe installation

1. Disconnect the pump from the electricity supply and remove it to a clean, dry work area.
2. Photograph cable routing, valves and diaphragm orientation before dismantling.
3. Follow the model manual and fit every matched component in the kit rather than mixing old and new valve parts.
4. Keep dirt away from valve faces and never lubricate parts unless the manufacturer specifically instructs it.
5. Reassemble the casing evenly, confirm seals are seated and test the pump before reconnecting all diffusers.

Air pumps should be positioned above water level or protected by correctly oriented non-return valves, kept dry and ventilated, and never wrapped so tightly that cooling air cannot circulate. Browse our air-pump accessories for airline, diffusers and manifolds, or compare complete pond air pumps where the motor or casing is beyond economical repair.

Frequently asked questions

Are these genuine Blagdon parts?

Yes. Each option uses the official Blagdon maintenance-kit part number shown in the table.

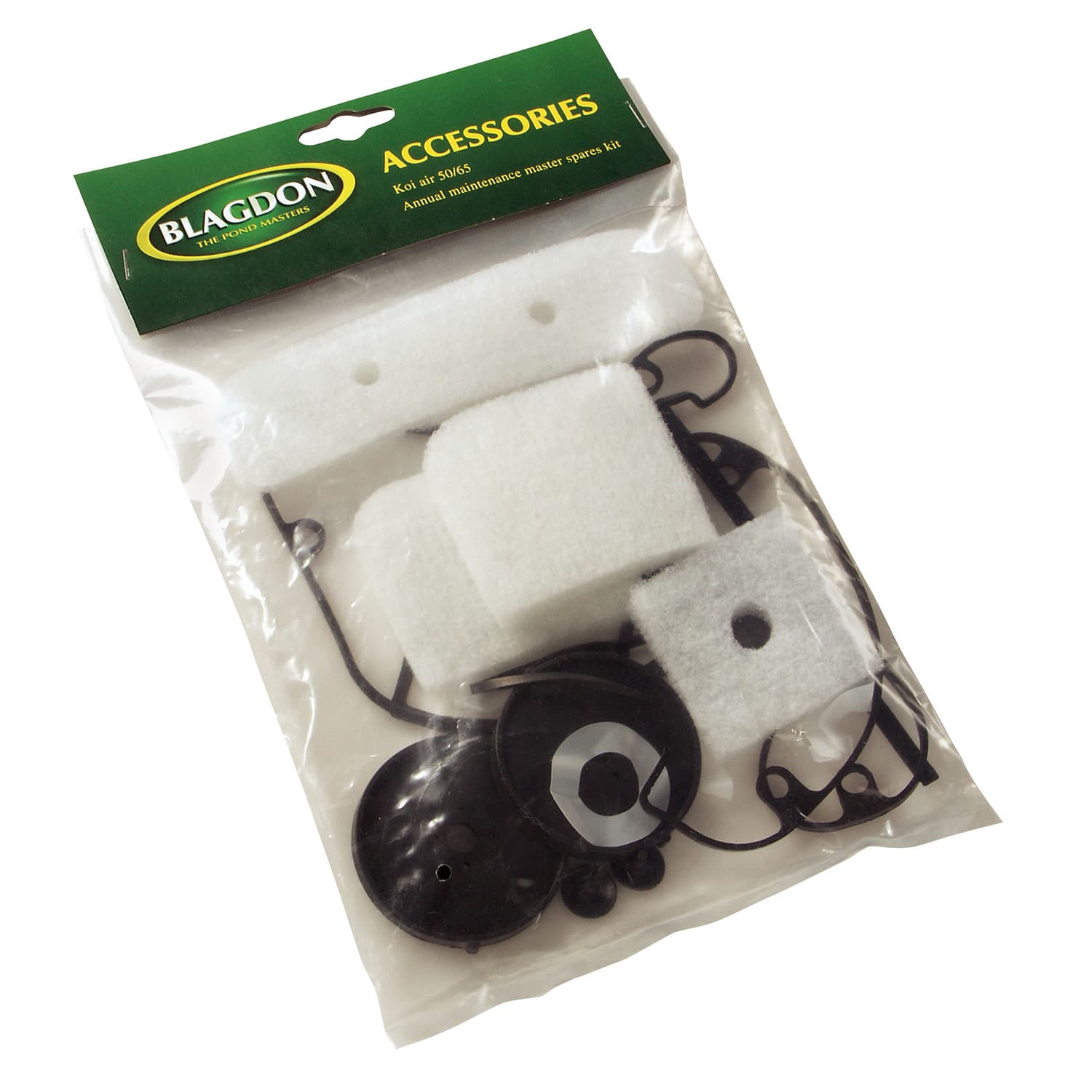

Will the Koi Air 50/65 kit fit a Koi Air 25?

No. Choose the Koi Air 25 option, part 1019941, for that pump. The Koi Air 50/65 option is part 1019958 and is intended for those two larger models.

Does a service kit include air stones and airline?

No. It contains internal service components; diffusers, airline and external manifolds are separate accessories.

Why is airflow still low after servicing?

Check diffuser blockage, airline restriction, installation depth and manifold settings. The pump may also have an electrical or magnetic fault outside the scope of the kit.

Must the pump be switched off to service it?

Yes. Electrically isolate it and work in a clean, dry place. Never dismantle outdoor electrical equipment while connected.

Related products

Compare these closely related products from the same range or category:

• Blagdon Pond Oxygenator Kits
• Charles Austen Air Pump Service Kit

Need a replacement valve chamber?

If your Koi Air pump needs a complete valve chamber rather than the parts in an annual service kit, see our Blagdon Koi Air Replacement Valve and Base options for Koi Air 25 and Koi Air 50/65. Match the spare to the pump model and the component identified during inspection.
