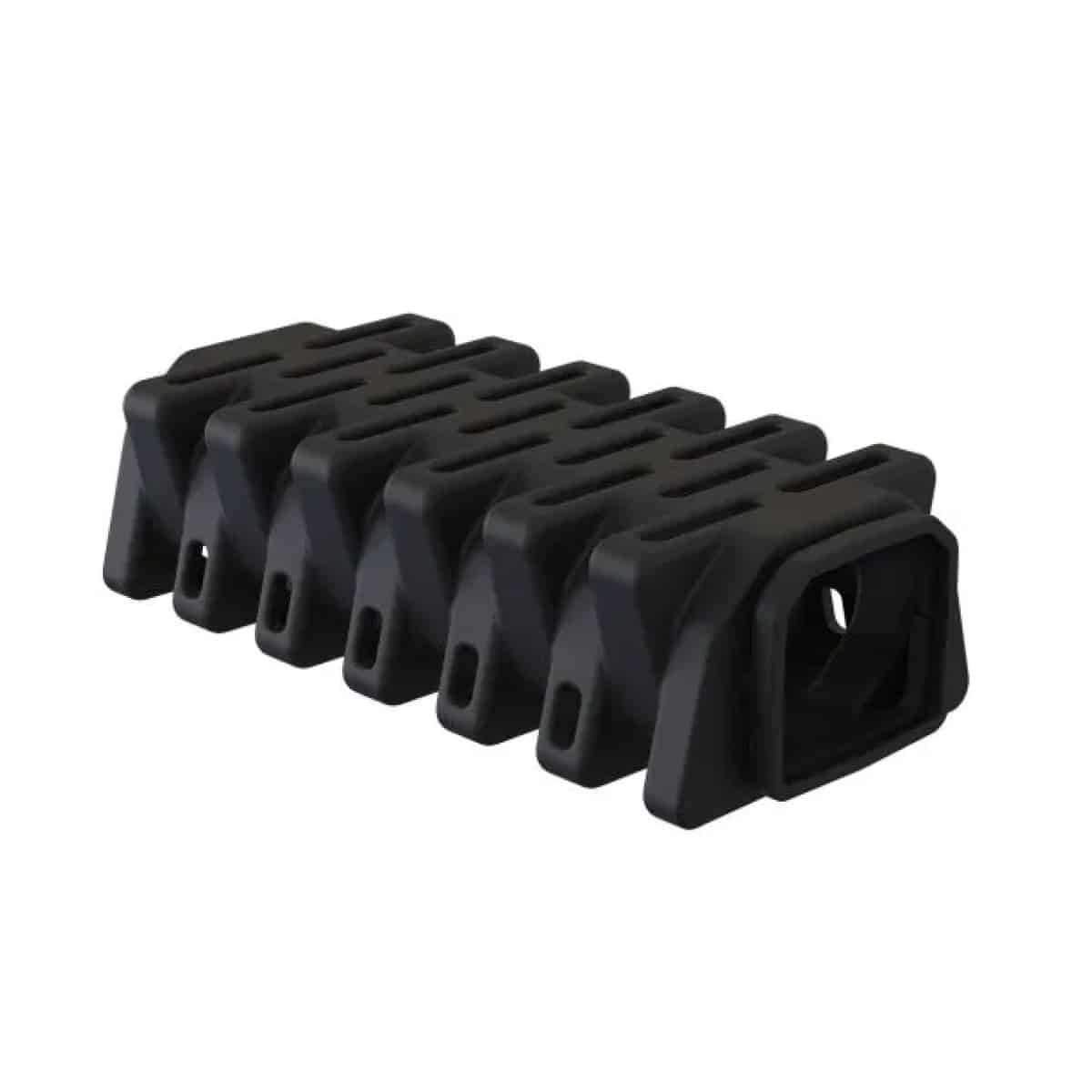

Aquascape Centipede Module V2

The Aquascape Centipede Module V2 forms the water-distribution channel at the bottom of a constructed wetland filter. It spreads incoming pond water beneath the filter bed and provides open space where heavier solids can settle before the water reaches the biological-media layers.

A distribution module, not a complete filter

One Centipede module does not replace the lined excavation, pump, pipework, access vault or filter bed. Multiple V2 modules can be connected for a larger distribution layout. The correct arrangement depends on the pond load, flow and available footprint.

Build the system around it

1. Snorkel Vault and Lid V2 with End Cap provides the access shaft for periodic clean-out. This package already includes an end cap, so do not add another unless the design needs one.
2. Centipede Module V2 distributes incoming water beneath the filter bed. Additional modules extend the distribution area.
3. Small AquaBlox and Large AquaBlox create the open water-storage and settlement space above the distribution layer.
4. FilterBlox adds biological filter tubes held within a modular structure. It is different from an empty AquaBlox water-storage module.
5. Snorkel Vault Extension V2 increases access depth where the filter bed design requires it.
6. Centipede End Cap V2 provides a plumbing connection at the end of a run when an additional end cap is needed.

What you receive

This listing supplies one Centipede Module V2, Aquascape 51010. The Snorkel Vault, end cap, AquaBlox, FilterBlox, liner, media and pump shown in the illustration are separate unless explicitly included in a package. The Snorkel Vault V2 package already includes its lid and a Centipede end cap.

Dimensions and installation

The UK catalogue gives approximate dimensions of 85cm long × 41cm wide × 24cm high and a weight of 6.1kg. Install the module at the designed lower level on a properly prepared base, connect the V2 components and retain access through the Snorkel for clean-out. Use the manufacturer’s wetland installation and sizing guidance for the full layout.

Adding to an existing wetland

Confirm whether the existing system uses V2 components or the older large-module range before ordering connected parts. Keep the original system information and photographs available; the names can be similar even where the physical components differ.

Explore wetland filtration for the complete layout, or Aquascape pond filtration to compare a BioFalls-style system.
