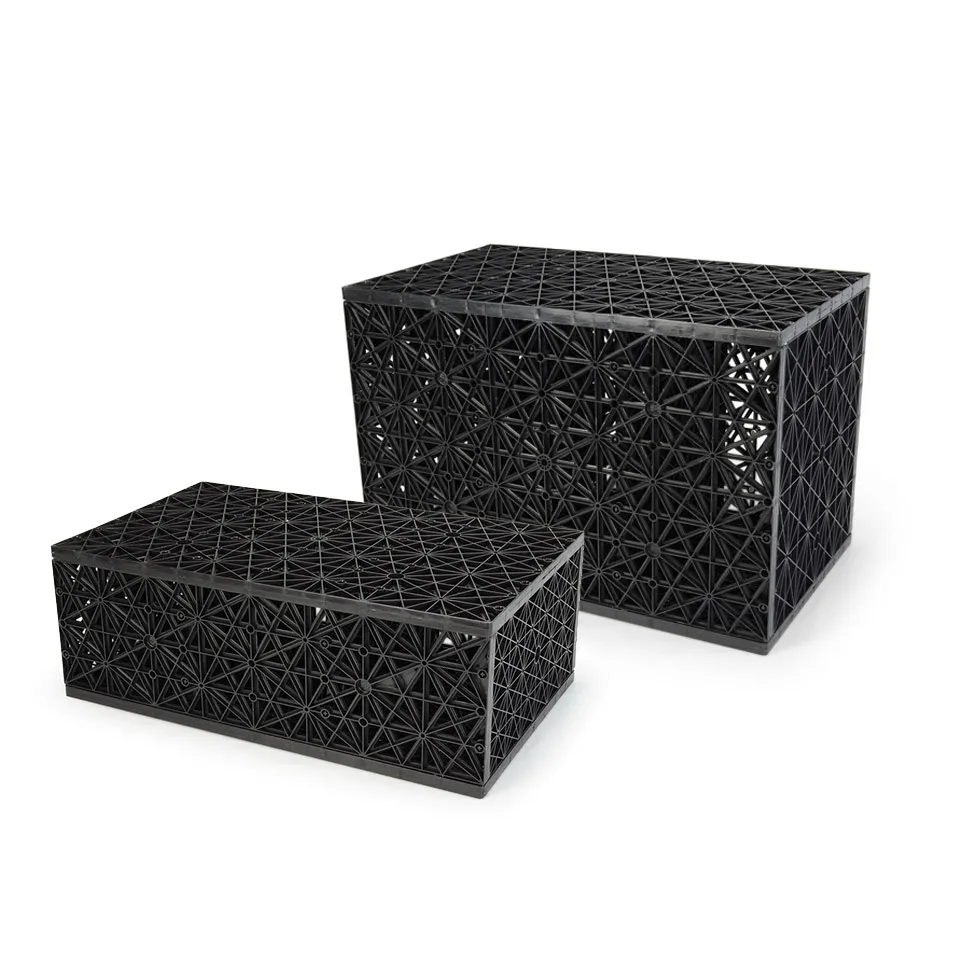

Aquascape AquaBlox Small Water Storage Module
| Brand | |
|---|---|
| Product Type | |
| Application | |
| Works With | Pondless System |
This Aquascape AquaBlox Small Water Storage Module provides 64 litres of nominal water storage within a separately lined reservoir. It creates void space beneath the finished feature; it is not a watertight tank on its own.
£39.99 (inc VAT)
How the Small AquaBlox fits your reservoir
This complete small module provides 64 litres of water storage within a lined reservoir. The UK supplier lists assembled dimensions of 673 Ă— 406 Ă— 241mm. Choose the number of modules from the reservoir layout and operating reserve, allowing room for the pump chamber and service access.
Build the watertight reservoir around the boxes
AquaBlox create the open internal space; they do not themselves hold water. Prepare the base, fit protective layers and liner, and retain pump access before finishing with suitable gravel or rock. Plan for water leaving the reservoir while the feature runs and returning when it stops.
Is this a complete box or a replacement panel?
This listing is for one complete small module, Aquascape 29491. Loose replacement panels and pallet packs are different listings. You do not need to buy a separate panel set to assemble a complete module.
Aquascape AquaBlox Small Water Storage Module
Aquascape AquaBlox® Water Storage Module displaces water for Pondless Waterfall and rainwater collection projects. AquaBlox are manufactured using recycled materials and designed to efficiently maximise water storage capacity, providing the ability to hold more water with a smaller reservoir footprint. Each AquaBlox will hold approximately 7.4 gallons of water per cubic foot, allowing over 3 times the water storage capacity than gravel will provide. This extra storage capacity will mean less time needed to top off the reservoir due to evaporation.

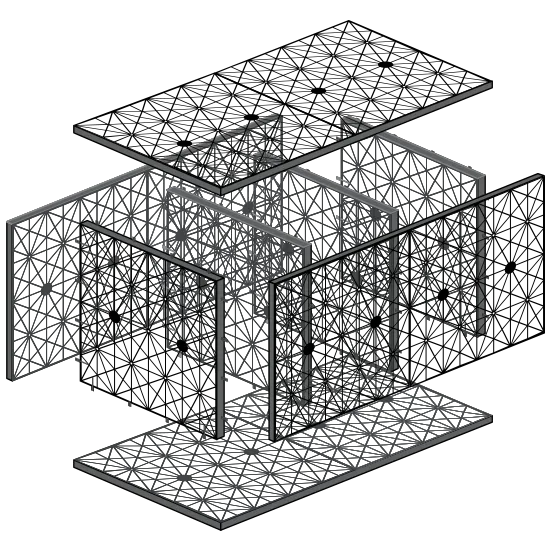

Using AquaBlox will also decrease the amount of labour, liner, and underlayment required during installation. Load-bearing performance depends on the complete installation, including assembly, base preparation, cover and load distribution. Follow the manufacturer’s installation instructions and obtain design advice before placing heavy boulders or structures above the reservoir. Aquascape AquaBlox are easier to clean, less prone to clogging, and come complete with the top, bottom, two sides and four structural supports.
Key features and benefits
- Ideal for use with Pondless® Waterfalls, rainwater harvesting systems, and other applications
- Makes installation quick, safe, and less expensive
- Structural water-storage modules for a correctly designed and installed reservoir
Specifications
Use the values for Aquascape part number 29491; related sizes and visually similar service parts may have different specifications.
| Aquascape part number | 29491 |
|---|---|
| Brand | Aquascape |
| UPC / GTIN | 827807294919 |
| Product weight | 4.99 kg |
Designing the underground reservoir
Calculate the reservoir from the running water volume, pump chamber requirements and the water held in the feature above it. Prepare a level, stable base and follow the specified load and geotextile arrangement. Provide access to the pump and clean-out points before the reservoir is covered.
Related equipment
Browse AquaBlox Water Storage, Aquascape Reservoirs & Water Storage and complete Aquascape range for the pumps, filtration, reservoirs, liner, plumbing, lighting, treatments and service parts used around this product. Planning the connected components together makes installation and future maintenance much easier.
Related Aquascape products
These products are closely connected by range or installation role. Check the part number and stated compatibility on each page rather than substituting by appearance alone.
- Aquascape AquaBlox Large Water Storage Module – an alternative size or connected system component.
- Aquascape AquaBlox Small Water Matrix Bulk Pallet Pack of 52 – an alternative size or connected system component.
- Aquascape AquaBlox Large Water Matrix Bulk Pallet Pack of 52 – an alternative size or connected system component.
- Aquascape AquaBlox Panel A – 26.5" Ă— 16" (67.3 Ă— 40.6 cm) – an alternative size or connected system component.
When these modules form part of a rainwater harvesting system, the Aquascape Downspout Filter can remove roof debris and finer sediment before water enters the storage reservoir.
Need an AquaBlox replacement panel?
If you are repairing an existing module rather than buying a complete AquaBlox, use our Aquascape AquaBlox Replacement Panels guide to identify Panel A, B, C or D and choose a single panel, 8-pack or trade pallet.
Storage capacity and dimensions
This Aquascape AquaBlox Small Water Storage Module provides 64 litres of nominal water storage within a separately lined reservoir. It creates void space beneath the finished feature; it is not a watertight tank on its own.
| Module storage volume | 64 litres |
|---|---|
| Dimensions | 673 Ă— 406 Ă— 241mm |
| Function | Water storage within a separately lined excavation |
Nominal storage is not the full usable running volume. Allow for water held in the stream and pipework, a reserve over the pump intake, splash and evaporation. AquaBlox modules require a separate watertight liner, protective geotextile and a properly prepared base.
