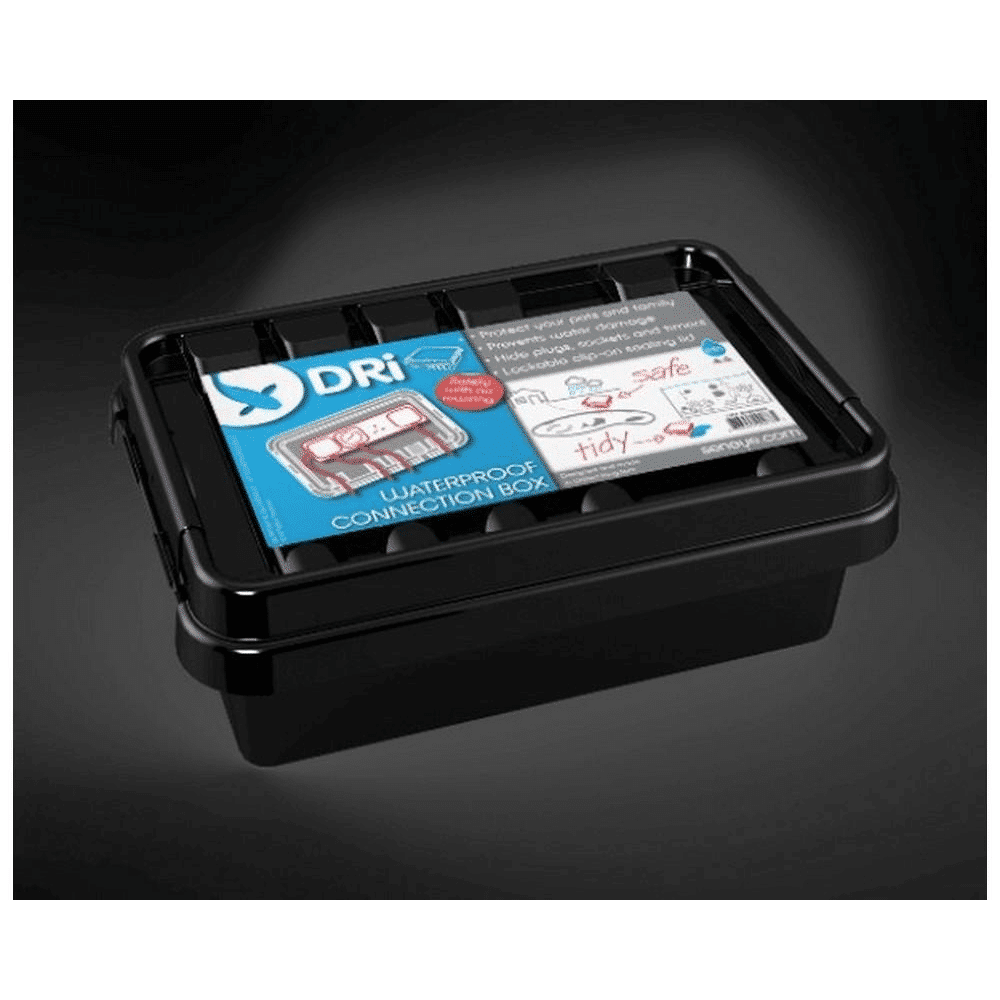

Seneye DriBOX Weatherproof Connection Box

Seneye DriBOX Weatherproof Connection Box

An IP55 enclosure with sealed cable entries for pond and aquarium connections

The Seneye DriBOX brings suitable electrical connections together inside a protective enclosure. It is intended for use around ponds and aquariums, where keeping plugs and connection points organised also makes them easier to inspect. Seneye specifies space for a four-way extension bar, including arrangements with timers, subject to the actual equipment fitting comfortably inside.

This is the Seneye DRi enclosure, manufacturer reference SEN000229 and SKS supplier code TK9843. It supplies a housing for your connections; the extension bar, timers, monitoring equipment and power supplies are separate. Choose it when you need a weather-resistant connection box and check the complete installation, including the leads and power supply, before use.

Product specification

Manufacturer / supplier reference	Seneye SEN000229 / SKS TK9843
Ingress protection	IP55
Body material	UV-stable polypropylene
Cable entries	Five
Lid	Continuous soft seal and clip closure
Cable features	Double soft seals and individual strain relief
Supplied enclosure parts	Main body, lid and two detachable clips

How the lid and cable seals work together

The enclosure uses a continuous soft seal around the lid, with double soft seals at the wires and individual cable strain relief. These features address the places where cables enter and where the lid meets the body. The lid is secured with clips, and Seneye describes the closure as lockable.

Before closing the box, look around the entire sealing surface. A cable lying across the lid edge, trapped dirt or a displaced seal can interfere with closure. Arrange the leads through the intended entries and make sure the equipment inside does not push against the lid. Follow the supplied instructions for the cable-sealing arrangement; simply forcing the clips shut is not a substitute for a correct fit.

Plan the space around plugs and timers

A four-way extension bar is a useful starting point when considering the layout, but the connected plugs matter too. A bulky plug-in timer or power adapter can occupy more space than an ordinary plug. Check the complete combination you intend to enclose, including the direction in which each cable leaves its plug.

Leave enough room for the connections to sit naturally, without sharply folding cables or using the lid to press everything into place. Think about access for inspection as well as initial assembly. If you regularly disconnect one item during maintenance, an orderly arrangement makes that connection easier to identify without disturbing all the others.

Position the box for its intended protection

Seneye gives the DRi an IP55 ingress-protection rating. It is a weather-resistant enclosure for use near the pond, not a container to place underwater. Choose a position away from standing water or a place that can flood. Keep it accessible so the lid, cable entries and surrounding area can be checked during routine maintenance.

The body is made from UV-stable polypropylene. That material choice suits the product’s outdoor purpose, while the location still needs sensible planning. Avoid a position where the box or its cables will be kicked, caught by garden equipment or pulled when an item is moved. Consider the route to the electrical supply before deciding where the enclosure will sit.

Use it within a suitable electrical setup

An enclosure does not replace RCD protection or make damaged equipment suitable for use. Electrical Safety First recommends RCD protection for outdoor electrical equipment and using leads and connectors intended for outdoor conditions. Follow the instructions and electrical ratings of every connected component, and do not connect one extension lead into another.

If you are organising connections for pond pumps or other equipment, plan the power arrangement around those products’ requirements. The number of sockets that can physically fit in a box is separate from the electrical load an extension or supply can support. Have a qualified electrician assess an installation that needs electrical work.

Inspection during pond maintenance

Switch off and disconnect the relevant supply safely before opening the enclosure to check or rearrange connections. Inspect the body, clips and sealing surfaces for damage, and check that cables remain in good condition. Do not continue using a damaged or wet electrical connection simply because it can be placed inside the box.

After work around the pond, check whether equipment or cables have been moved. Re-establish the intended cable route and ensure the lid closes correctly before returning the setup to service. Keep the enclosure’s instructions with those for the connected equipment so the installation requirements remain available at the next maintenance visit.

Check what you need before ordering

This listing is for the connection enclosure, including its body, lid and clips. It does not include a Seneye monitor, web server, extension strip or timers. If you are assembling a wider maintenance setup, our pond accessories range can help you find the separate items needed for your pond.

Match the SEN000229 reference when comparing information for this Seneye product. Boxes sold under other DRiBOX size names may have different dimensions or layouts. If a particular adapter or restricted installation space makes exact clearance critical, establish the required fit before ordering rather than relying on a similarly named enclosure.
