Pond Filter Media Support Grid 27 x 16 Inches

Pond Filter Media Support Grid 27 x 16 Inches

A diamond-opening support sheet for a suitable filter chamber layout

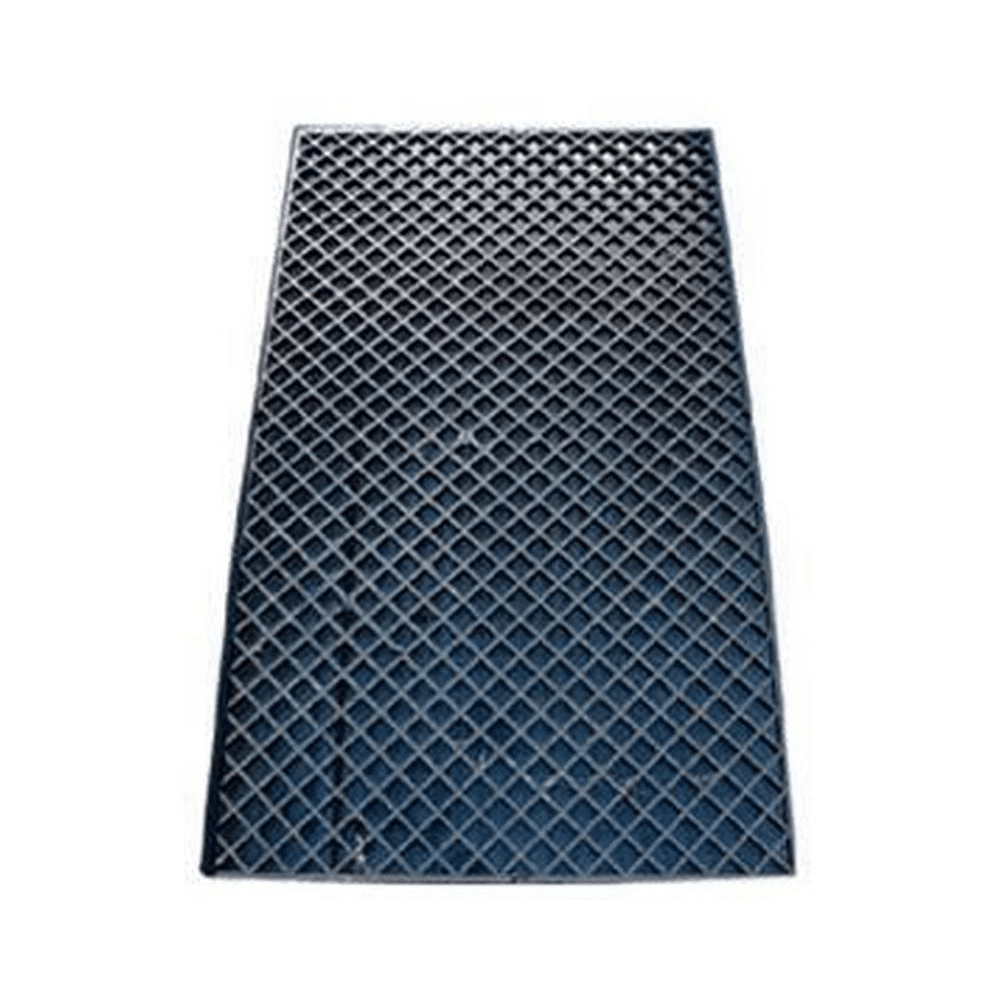

This filter-media support grid measures 27 × 16 inches and has diamond-shaped openings. It provides an open support surface when arranging media in a suitable pond-filter chamber. Plan how the sheet will be supported, how water will pass through the media and how you will remove everything for cleaning before fitting it.

The supplier reference is FM250. SKS lists square-opening and smaller modular grids separately, so check the code and dimensions when replacing an existing piece. This listing supplies one grid sheet, without media or a supporting frame.

Size and specification

Sheet dimensions	27 × 16 inches
Approximate metric equivalent	68.6 × 40.6cm
Opening pattern	Diamond
Colour	Black
Supplier code	FM250
Included	One filter-media support grid

The centimetre dimensions are rounded conversions of the supplier’s nominal inch measurements. They describe the overall sheet, not the size of each diamond opening. Check the space inside the chamber rather than relying on the outside dimensions of the filter housing.

What the support grid contributes

A grid can hold suitable media above the chamber floor while leaving an open path beneath it. That arrangement can make space for water movement and access to settled material, depending on the filter design. The grid needs a suitable supporting structure; it is not a complete self-supporting filter tray.

Its job is to support the media, rather than perform all the filtration itself. The opening pattern does not establish a fine-particle filtration rating, biological capacity or pond-size rating. Those questions depend on the media, flow arrangement and complete system.

Measure the chamber and removal route

Measure the internal area where the grid will sit, including ledges, pipework, corners and any narrowing below the lid. Allow for the supports that will carry the sheet. A grid that fits the chamber at one level may not pass through a smaller access opening above it.

Plan the removal route as carefully as the initial fit. Consider whether the media can be taken out separately, whether pipework obstructs access and where the removed items will be placed during cleaning. This avoids building an arrangement that works initially but is difficult to service.

Support the intended load

The supplier does not state a load rating or an approved unsupported span for this sheet. Do not infer either from the overall dimensions or from a similar-looking grid. Assess the support arrangement with the actual media and filter design in mind before committing to it.

Wet media and retained debris affect the load in use. If the layout would depend on the sheet spanning a large gap or carrying a concentrated weight, confirm that the arrangement is suitable before fitting it. Avoid treating the grid as a structural platform or standing surface.

Match the openings to the media

Check that the media you intend to use will remain where it belongs. The supplier identifies a diamond pattern but does not specify the opening dimensions. Small loose media should not be assumed to stay above the grid simply because larger pieces do.

If a separate media bag or retaining arrangement is needed, assess it as part of the complete flow path. It must suit the media and the filter, rather than merely preventing pieces from dropping through. Avoid packing a chamber so tightly that cleaning access and water movement are compromised.

Fitting and routine inspection

Check the full sheet against your measurements before planning any trimming. Where the installation requires cutting, confirm a suitable method for the material and remove rough edges before placing it in the filter. No cutting tool, fixing set or support frame is included.

During maintenance, inspect the sheet and its supports for damage or movement. A support that has shifted can change the way the media sits even if the grid itself looks intact. Replace a damaged component rather than continuing to rely on an arrangement that no longer holds the media securely.

Keep the space beneath accessible

Settled waste underneath a raised grid still needs to leave the system. Include a practical cleaning route in the layout and follow the filter’s own maintenance instructions. Check that supports do not obstruct drains or create inaccessible pockets where debris accumulates.

Physical waste removal and biological treatment are different parts of pond filtration. Nitrifying bacteria process ammonia through nitrite to nitrate, and their activity depends on suitable oxygen and water conditions. Adding a support grid alone does not establish that the biological stage is adequate.

Choosing and checking the finished system

Choose FM250 when you need the listed 27 × 16-inch diamond-opening sheet and have confirmed its suitability for your layout. It is different from the square-opening FM250S and from smaller modular grids. No interlocking feature or material grade is specified for this listing.

Continue checking water quality with suitable equipment such as the Colombo Pond Test Lab Professional. For help comparing options, contact That Pond Guy with your chamber measurements, media type and intended support arrangement.
