In-Lite ACE DOWN 12V Wall Light

In-Lite ACE DOWN 12V Wall Light

ACE DOWN is a substantial architectural wall light that creates a broad pool of light beneath the fitting. It suits entrances, garden walls, terrace boundaries and outdoor kitchen areas where useful downward illumination is wanted without an exposed lamp.

The fitting is part of the In-Lite 12V system and is available in finishes that coordinate with the wider ACE, LIV and compact wall-light families.

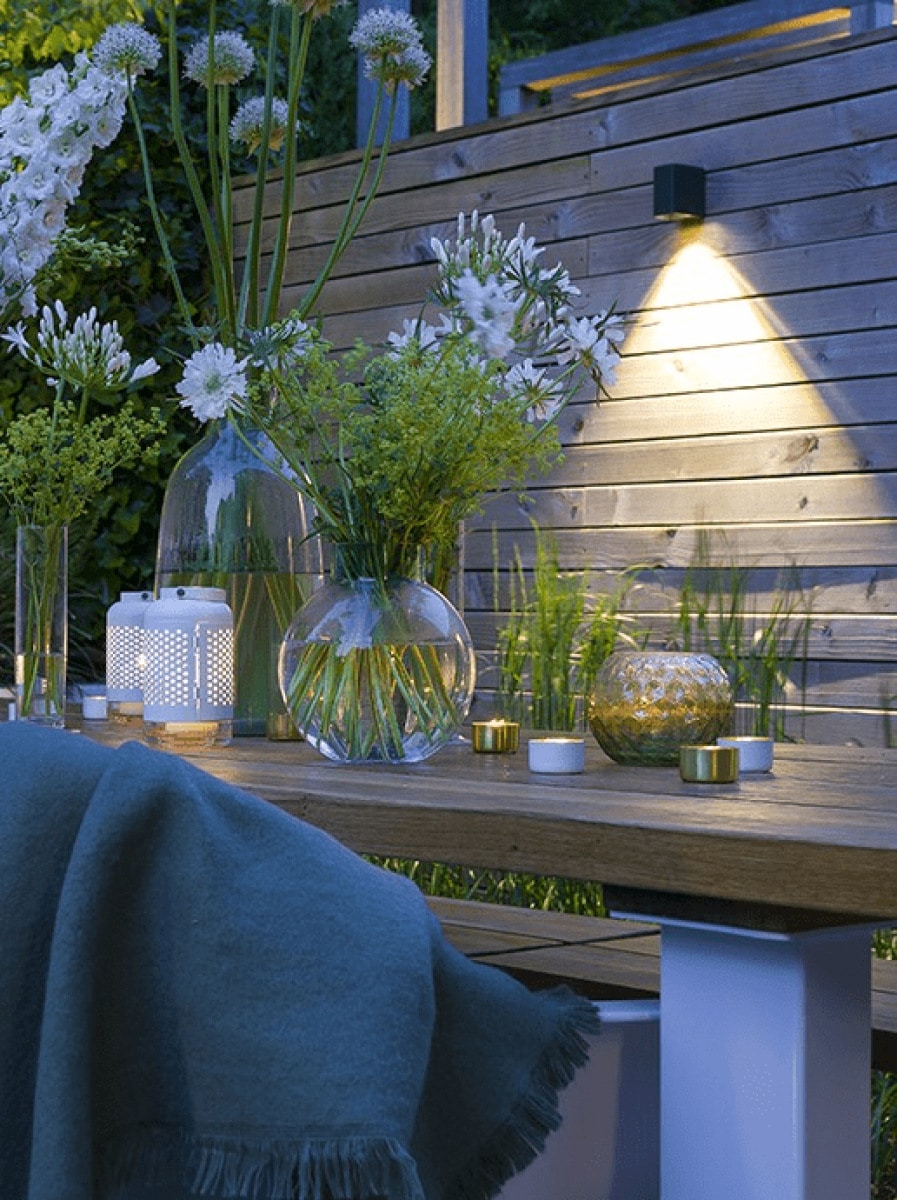

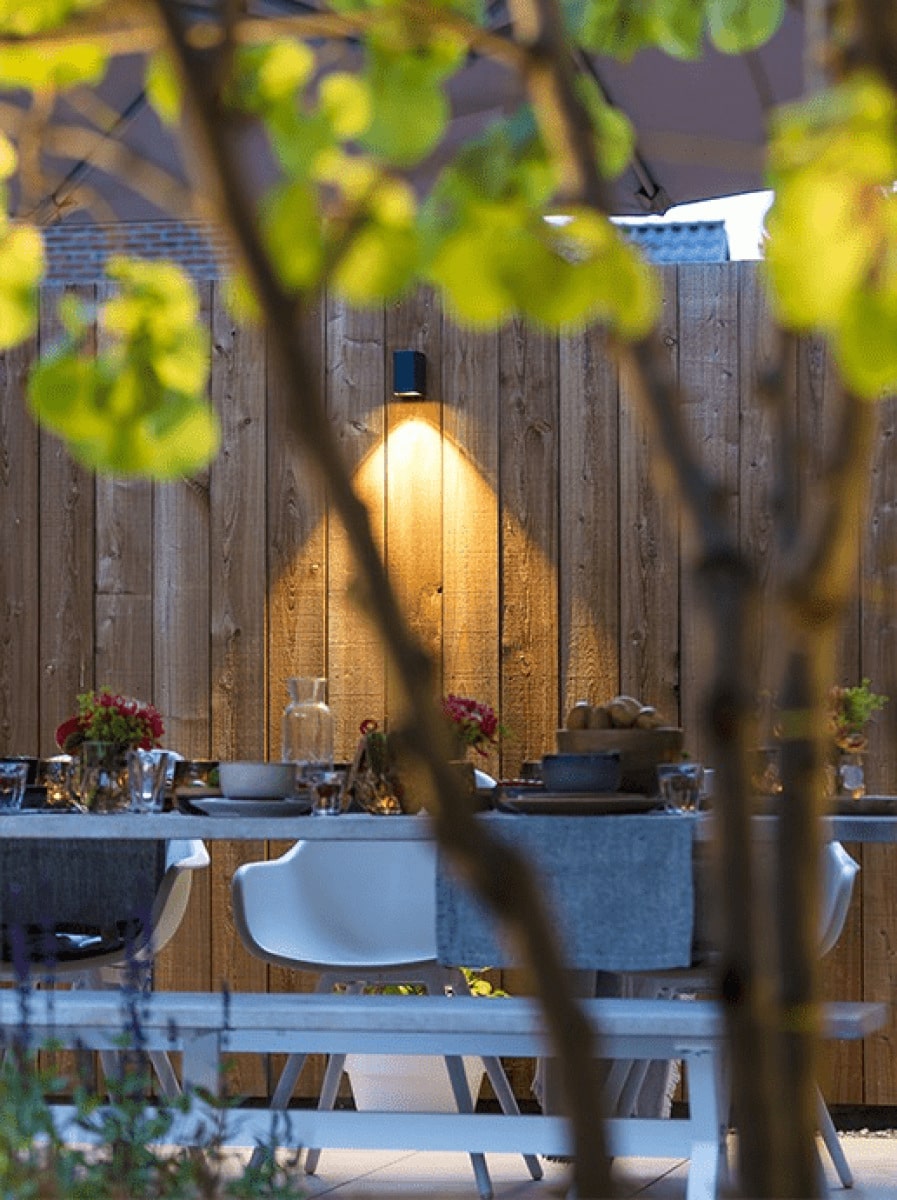

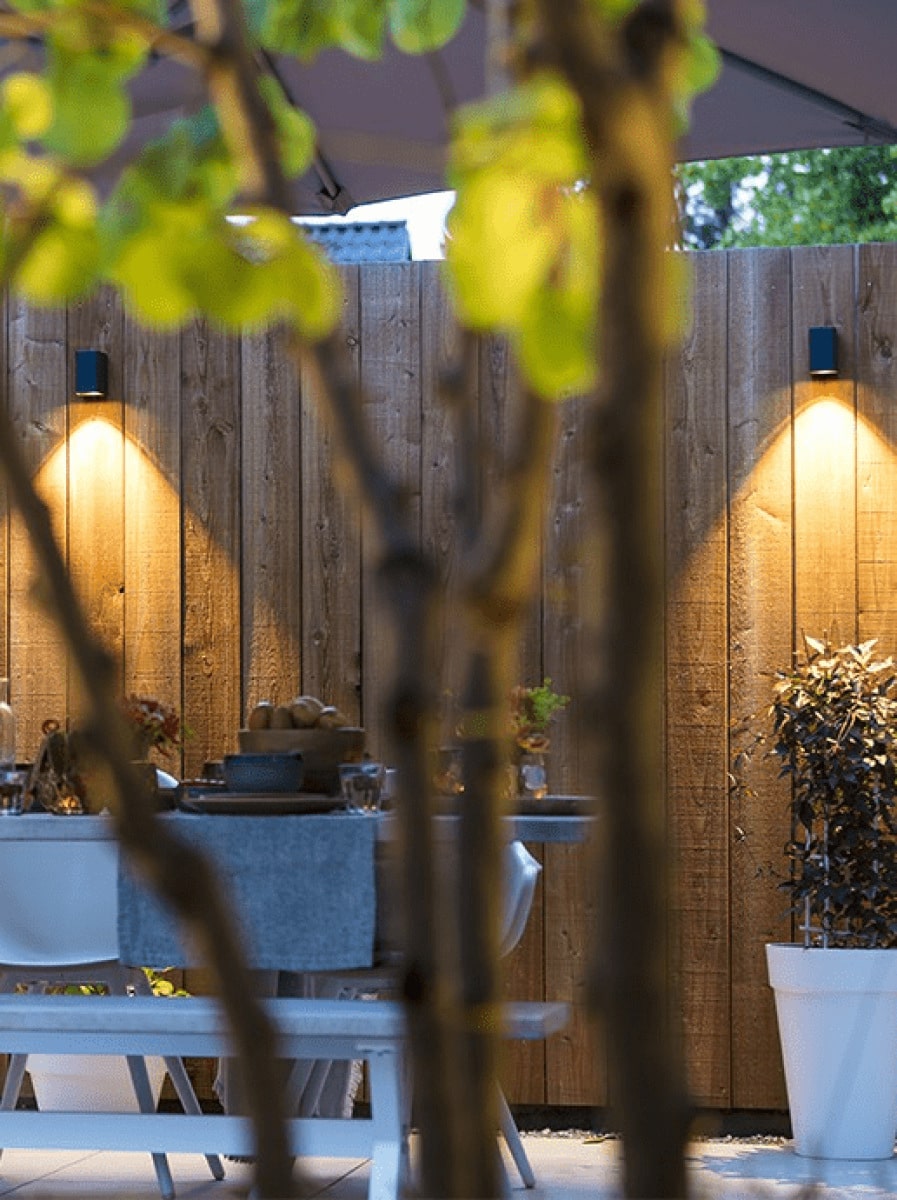

The light effect on the wall

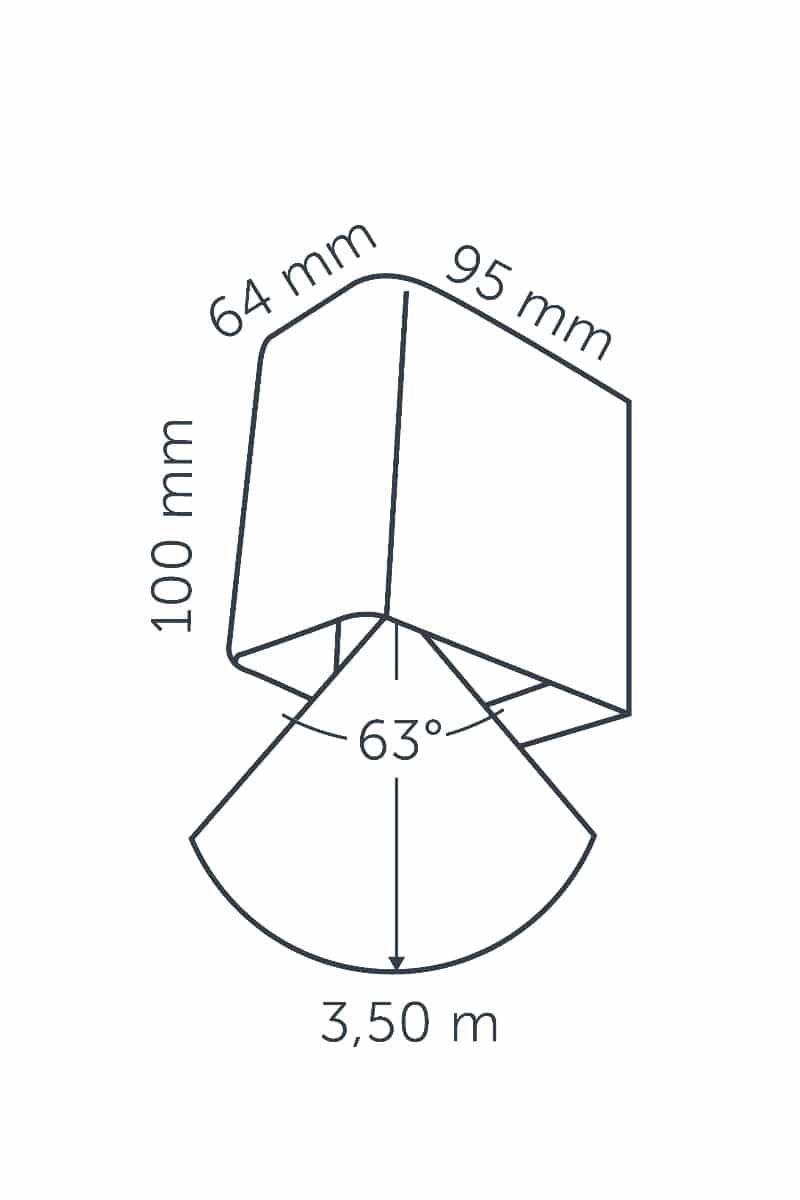

A 63-degree downward beam washes the wall and spreads onto the ground below, helping define both the vertical surface and the route beside it.

Wall texture, mounting height and nearby surfaces all change the result. Hold a temporary light at the proposed position after dark before drilling every fixing point.

Where it works best

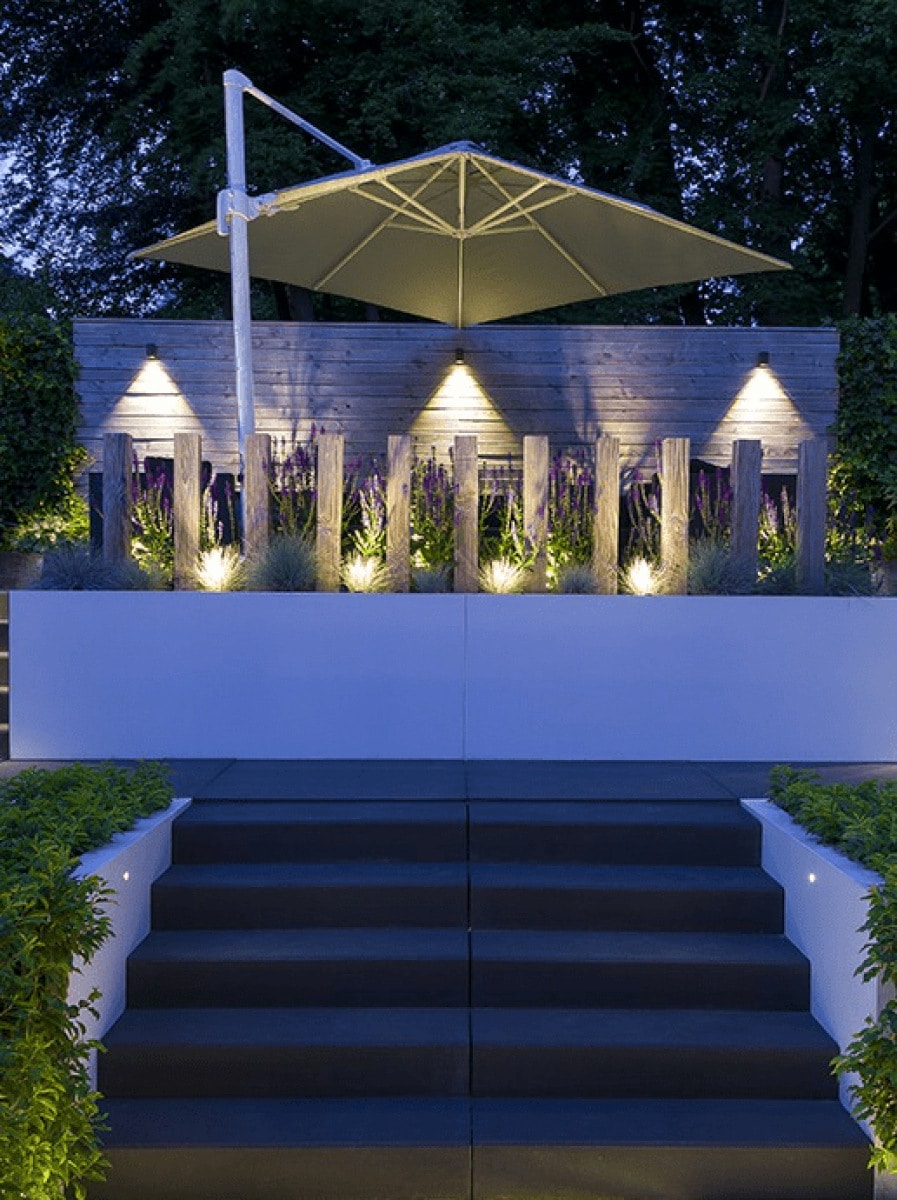

Use ACE DOWN where one controlled downlight is preferable to an up-and-down pattern: beside doors, along paths, above low walls and around seating areas.

Keep the fitting out of door swings and likely impact zones, and avoid mounting where irrigation or roof run-off will pour directly over it.

Installation and cable planning

Plan the system-cable route before finishing the wall or paving. The supplied EASY-LOCK connects the fitting to genuine In-Lite system cable. Use an accessible junction position and follow the current mounting template.

Verified technical information

• Light effect: single downward wall wash
• Colour temperature: 3000K warm white
• Beam angle: 63°
• Transformer load: 5.3 VA
• Supply: In-Lite 12V low-voltage system
• Protection: IP55

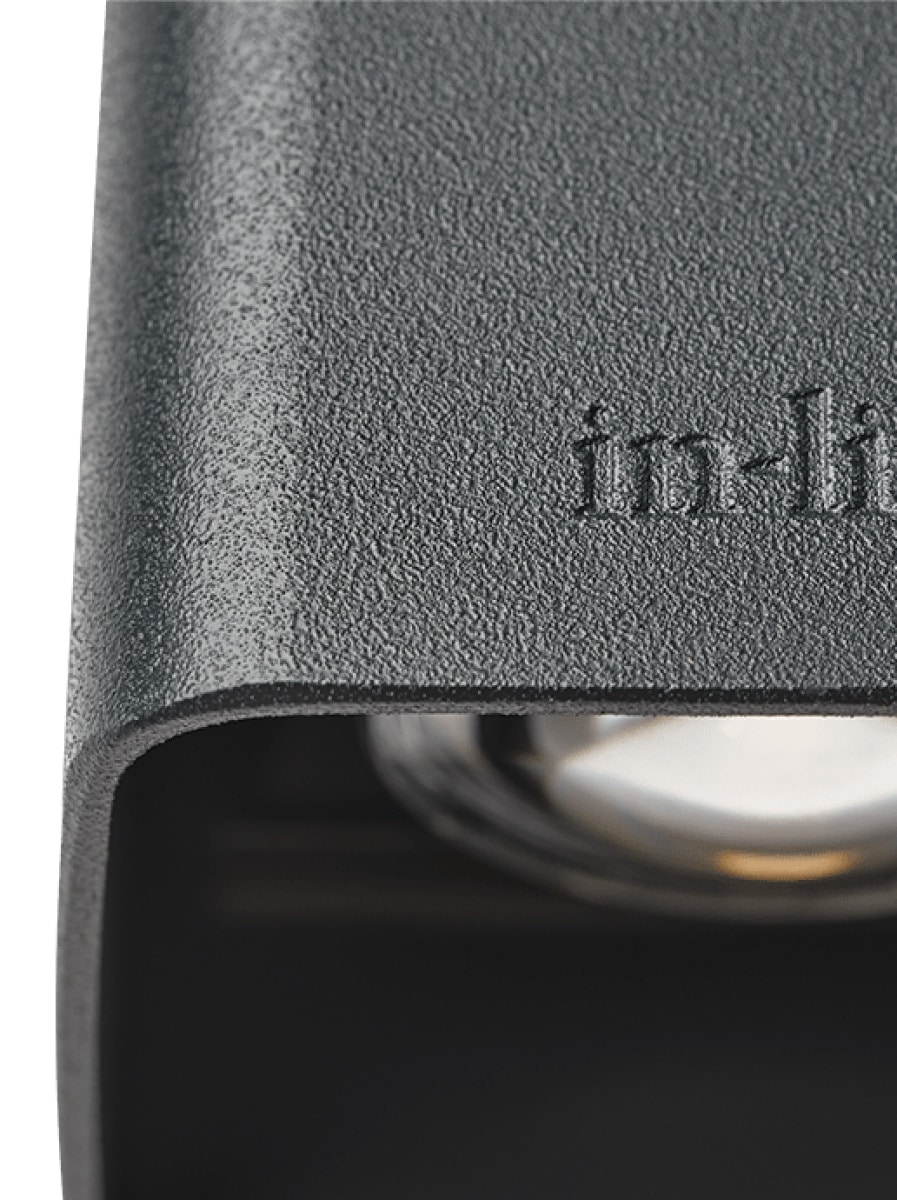

• Material: coated aluminium
• Expected LED life: 25,000 hours
• Manufacturer guarantee: 5 years when correctly installed as an In-Lite system

Choosing between similar In-Lite wall lights

Choose ACE DOWN for one broad downward pool. Choose ACE UP-DOWN for a stronger architectural pattern above and below, or the smaller WEDGE and CUBID families where a more discreet body is appropriate.

Browse all In-Lite wall and ceiling lights or contact us with a wall photograph, dimensions and intended effect for practical help comparing the options.

Plan the complete In-Lite circuit

Add 5.3 VA for every fitting when sizing the transformer. Total the VA load on the whole route and leave sensible spare capacity for later additions.
