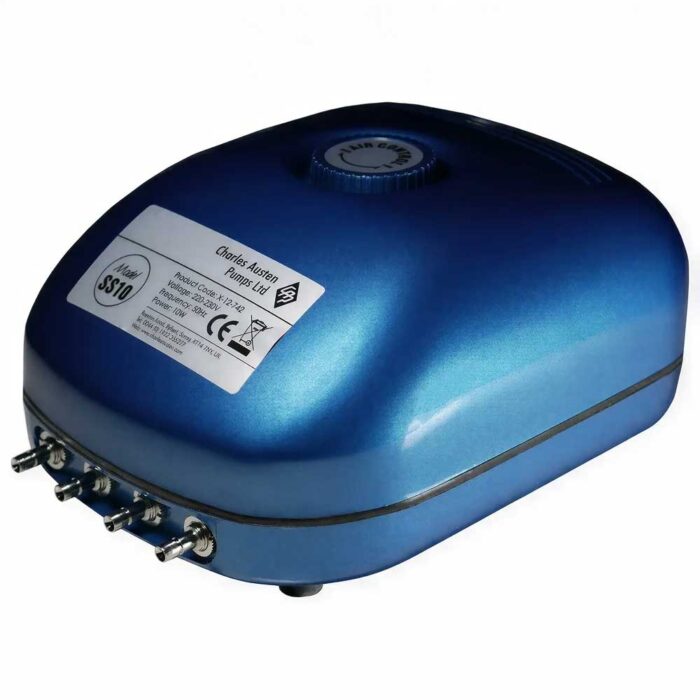

Charles Austen SS10 Air Pump

Charles Austen SS10 Air Pump

Charles Austen SS10 Air Pump is an adjustable aquarium air pump intended for multi-outlet aquariums, propagation systems and smaller aeration duties. Its published maximum output is 10.0 L/min at up to 0.15 bar, using 10 W. This page identifies the exact model, duty figures and selection limits so it can be compared accurately with the other products in the range.

Charles Austen is both the product brand and supplier. The figures below come from the current 2026 supplier catalogue, supported by manufacturer guidance where a current technical page is available. Maximum figures are not the same as guaranteed installed performance: pipework, depth, pressure, media loading and maintenance all affect the result.

Who is the SS10BLUE best suited to?

This model is best considered for multi-outlet aquariums, propagation systems and smaller aeration duties. It sits 5 of 9 when the range is ordered by nominal output/capacity. That makes it easier to judge whether it is a compact entry model, a mid-range choice or one of the higher-output options before comparing price alone.

Key product features

• Range covers compact single-outlet to high-output multi-outlet aeration
• Useful for air stones, sponge filters and hydroponic reservoirs
• Published pressure rating helps assess diffuser depth
• Multiple outlet models reduce the need for a separate manifold
• Exact SKU and manufacturer part number: SS10BLUE.
• Supplied through Charles Austen and linked to compatible models for easier range comparison.

Technical specification

Technical figures are nominal supplier ratings. The calculated 24-hour energy figure, where shown, is rated wattage × 24 hours and does not include tariffs or intermittent thermostat operation.

Understanding the published specification

Airflow and pressure must be read together. The published 10.0 L/min is paired with 0.15 bar; the installed airflow will be lower if the pump has to overcome greater water depth, a restrictive diffuser, narrow airline, long pipe runs, non-return valves or a heavily throttled manifold. Pressure is not an optional extra specification: it is what enables the air to reach the diffuser and pass through its membrane or pores.

The catalogue specification for this exact model is 10.0 L/min 0.15 bar 10W. Where the page includes a calculated daily-energy figure, it is provided only to make continuous-running products easier to compare; it is not an electricity-cost estimate and does not replace the rated power shown above.

How to size this model correctly

Match the number of active outlets and the depth of the deepest diffuser. Keep unused outlets managed according to the instructions so the pump is not operated against excessive back pressure.

For critical livestock, treatment or commercial systems, allow spare capacity and consider redundancy. If the required duty is close to the model’s maximum, moving to the next size normally provides a more useful operating margin than running a smaller unit continuously at its limit.

Installation and commissioning

Installation format: Dry installation above water level. Keep access available for cleaning and servicing, use appropriately sized hoses or airline, and avoid unnecessary bends or restrictions. Aquatic electrical equipment should be protected by a suitable RCD and installed in accordance with the supplied instructions.

After installation, check every outlet for a stable bubble pattern and listen for a change in pump tone. A branch with weak output may be restricted or longer than the others, while a pump that becomes noticeably louder or hotter can be working against excessive back pressure.

Commission the complete system by checking actual flow, pressure, water level or temperature at the point of use rather than assuming the headline maximum will be achieved. Recheck after filters, diffusers or pipework have had time to accumulate normal fouling.

Compatible system components

For aquarium and small-reservoir work, match each outlet to an air stone, sponge filter or aeration device that can accept the available flow. Fine-pore stones, check valves and deep tanks add resistance. Keep the pump above water level where possible; otherwise use a correctly oriented non-return valve and route the airline to prevent siphoning.

Compatibility should be confirmed from the complete installation: connection size, hose or airline bore, voltage, control method, permitted flow and future servicing access can all affect whether two individually suitable products work correctly together.

Maintenance and service life

Clean the intake and air stones regularly. Uneven bubbles usually indicate a restricted diffuser, unequal airline length or a partially closed control rather than a lack of pump capacity.

Record the installation date and normal operating performance. A visible reduction in output, increasing noise, rising temperature or repeated tripping should be investigated rather than compensated for by restricting or altering other parts of the system.

Performance checks and fault finding

If airflow falls, test the system methodically: inspect the intake, disconnect the manifold to compare unrestricted output, check the airline for leaks or kinks, and clean or replace fouled diffusers. Only diagnose internal pump wear after external restrictions have been ruled out. For critical aeration, keep a contingency pump or alternative oxygen source available during servicing.

Compare any suspected fault with the clean, newly commissioned condition. Changes across every outlet or return normally point to the main unit or a shared restriction; a problem affecting one branch is more likely to be local pipework, airline, a valve, diffuser or connected accessory.

Compare similar air pumps

The table below links to five nearby models so the buyer and search crawler can move through the range without returning to a search page.

Model	Key published duty	Product type
ACO9610	10.0 L/min · 0.15 bar · 10 W	Air Pump
ACO9602	7.2 L/min · 0.12 bar · 5 W	Air Pump
SS7BLUE	7.2 L/min · 0.12 bar · 5 W	Air Pump
ACO9601	3.2 L/min · 0.12 bar · 2 W	Air Pump
SS3BLUE	3.2 L/min · 0.12 bar · 2 W	Air Pump

Complete the system and explore the range

The supplier and customer-facing brand for this listing is Charles Austen. The links below connect this model to its dedicated range, relevant system components and the wider Charles Austen catalogue.

• Browse the Charles Austen ACO96 Series
• Browse all Charles Austen products
• Charles Austen air-pump service kits
• Pond and lake diffuser stations
• Standard sinking airline
• Heavy-duty sinking airline

Technical information sources

Core model figures were checked against the current 2026 Charles Austen supplier catalogue. Family features, installation points and application guidance were cross-checked against current manufacturer technical material where available.
