Charles Austen DS1 Diffuser Station

Charles Austen DS1 Diffuser Station

Single 10 inch diffuser station with a fillable base for pond and lake aeration.

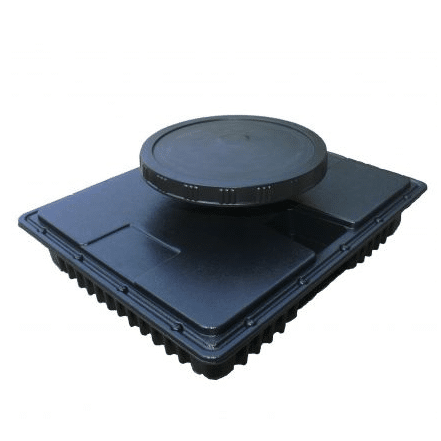

The Charles Austen DS1 Diffuser Station is a single air diffuser station designed to improve oxygen levels, water movement and overall water quality in ponds, koi ponds, lakes and aquaculture systems. It uses 1 x 10 inch rubber diaphragm diffuser to release fine bubbles from the pond bottom, helping oxygen move through the water column rather than only disturbing the surface.

Bottom aeration is useful because it supports beneficial aerobic bacteria, helps reduce stagnant areas and improves circulation in deeper or larger ponds. It can also help reduce the conditions that allow sludge, poor water quality and algae problems to build up. No electrical equipment goes into the water. The air pump stays outside the pond and sends clean air through weighted airline to the diffuser station.

DS or DSW diffuser station

The DS range has a hollow base that can be filled with sand or gravel to help it sit securely on the pond bottom. If you want a ready weighted version that sinks without extra ballast, see the matching Charles Austen DSW1 Diffuser Station.

You can also view the full large pond and lake air diffuser station range to compare the single, twin and four disc options.

Air pump sizing guide

As a practical guide, each 10 inch diffuser disc normally works best with around 40 to 50 litres per minute of air. This model has an airflow range of 30 to 60 litres per minute, with an ideal working range of around 40 to 50 litres per minute. Matching the diffuser to the correct air pump helps keep the airflow balanced, efficient and quieter.

Recommended air pump options include Charles Austen ET40 Pond Air Pump, Charles Austen ET50 Pond Air Pump, Charles Austen ET60 Pond Air Pump, Charles Austen ETX60 ECO Air Pump. You can also browse the full Charles Austen ET air pump range and ETX ECO air pump range for other suitable models.

Recommended airline and manifolds

For most pond installations we recommend using sinking airline so the pipe sits neatly on the pond bottom. The 4mm and 8mm Standard Sinking Airline is useful for smaller or shorter air runs, with the 8mm option normally preferred for these diffuser stations where suitable.

For larger ponds, longer air runs or higher output air pumps, the Evolution Aqua Heavy Duty Sinking Airline is the better choice. We would normally recommend 8mm or 10mm airline for Charles Austen diffuser stations, with 10mm being the stronger choice for longer runs and larger pumps.

For long, permanent underwater runs—particularly with higher-output Charles Austen air pumps—also consider our Super Heavy Duty Weighted Airline. Its 12.5mm internal bore helps reduce restriction compared with smaller airline, while the weighted 30m hose sinks naturally to the pond or lake bed. Because it is larger than standard 8mm or 10mm airline, allow for a suitable reducer or connector at the pump, manifold and diffuser station.

If one air pump is supplying more than one diffuser station or airline run, use a 2 way air manifold to split and balance the airflow. The 4 way air manifold can also be useful depending on the number of diffuser lines in the pond.

Key benefits

• Improves dissolved oxygen levels in ponds, lakes and koi systems
• Helps reduce stagnant water and supports healthier biological activity
• Fine bubble aeration from the pond bottom for better circulation
• No electrical parts are placed in the water
• Suitable for use with Charles Austen pond air pumps and weighted airline

Technical information

Diffuser discs	1 x 10 inch rubber diaphragm diffuser
Airflow range	30 to 60 litres per minute
Best working airflow	40 to 50 litres per minute
Base type	fillable hollow base
Recommended airline	8mm or 10mm sinking airline, depending on pump size and run length

Installation and care

Place the diffuser station in the deeper or more stagnant area of the pond where air movement is most useful. Connect it to suitable weighted airline and keep the air pump in a dry, ventilated position above water level where possible. If the air pump has to sit below water level, fit a suitable non return valve to help protect the pump from water travelling back through the airline.

Check the diffuser and airline occasionally for blockages, kinks or uneven airflow. If airflow drops, inspect the air pump filter and service parts as well as the diffuser connection.

Aeration setup notes

Charles Austen DS1 Diffuser Station should be chosen as part of the complete air system, not just by litres per minute. Airline length, airline bore, diffuser depth, manifold taps and back pressure all affect the real airflow that reaches the pond or filter. A well matched aeration system runs more quietly, puts less strain on the pump and gives more dependable oxygen support.

• Use suitable airline size for the pump output and distance involved.
• Keep the air pump dry, ventilated and protected from flooding.
• Spread airflow across multiple diffusers on larger ponds where possible.
• Check diaphragms, filters and diffusers during routine servicing.

For koi ponds, moving bed filters and warm weather aeration, consistent airflow is often more useful than simply oversizing the pump. Balanced diffuser placement gives better circulation and helps avoid stagnant areas.

Complete your diffuser station setup

Diffuser stations work best when matched to the correct air pump and airline. A single 10 inch diffuser usually performs well at around 40 to 50 litres per minute of air, so larger pumps may need multiple diffuser discs or a manifold to spread the air properly.

• Browse all Charles Austen diffuser stations
• Browse the full Charles Austen range
• Choose a suitable pond air pump
• Standard sinking airline
• Heavy duty sinking airline
• 2 way air manifold
• 4 way air manifold

If you are unsure how many diffuser stations are needed, the best approach is to start with the pond size, depth, fish load and target airflow. We can help match a Charles Austen air pump and diffuser layout so the system is balanced rather than simply overpowered.
