Air-Aqua BIO-Rotator Compact-M

Air-Aqua BIO-Rotator Compact-M

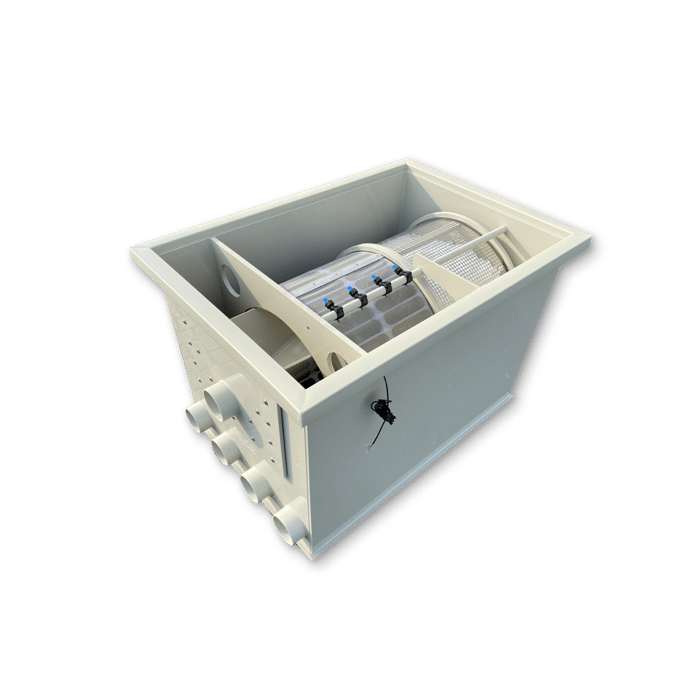

The Air-Aqua BIO-Rotator Compact-M combines a 70-micron automatic drum screen with a continuously rotating biological stage. Mechanical waste is rinsed away before it can break down, while the rotating Hel-X 17 chamber repeatedly exposes the biofilm to pond water and oxygen.

This is a complete high-end filter system, not simply a drum with an empty chamber. The listed package includes the lid, control electronics and the stated Hel-X 17 media allocation; the Doppio’s additional external biological chamber should be checked separately for its included media.

Filtration process

• 70-micron drum screen for automatic solids removal
• Continuously rotating biological stage
• Hel-X 17 biological media supplied as stated
• Automatic rinse cycle
• Separate drive arrangement on the larger models
• Provision for SuperUV integration on applicable models

Verified product information

Plant-room and waste planning

Confirm gravity or pump-fed water levels, number and size of inlets, rinse-water supply, waste fall, electrical load and overflow route from the current drawing. Set the filter on a rigid, completely level base and make the chamber removable without cutting finished pipework.

Maximum flow is not an automatic operating target. The pond turnover, bottom-drain velocity, residence in the biological stage and safe water-level drop through a dirty screen all need to agree. Provide a bypass or contingency plan for maintenance.

Our practical view: At this price, the drawing should be final before the filter arrives. We would mark the operating waterline, pipe centres, lid swing, waste fall and removal route on the plant-room wall, then check every one against the current Air-Aqua manual.

Frequently asked questions

Does it include biological media?

The listed package includes 100 L Hel-X 17; check the Doppio extension separately where applicable.

What does the rotating biological stage add?

It continually brings the biofilm into contact with oxygenated water while helping shed excess old growth.

Does it need a rinse pump?

Model arrangements differ. Confirm whether the selected unit uses an integrated pump or requires a suitable clean-water supply.

Can it be installed in a tight pit?

Only if every lid, motor, spray bar and media section can still be removed safely.

Is the maximum flow suitable for every koi pond?

No. Size from waste load, turnover, pipework and biological duty as well as the headline flow.

Supplier availability: SKS currently lists this model as out of stock. We have kept the page live because the specification, compatibility and replacement information remain useful; checkout stays disabled until stock returns.
