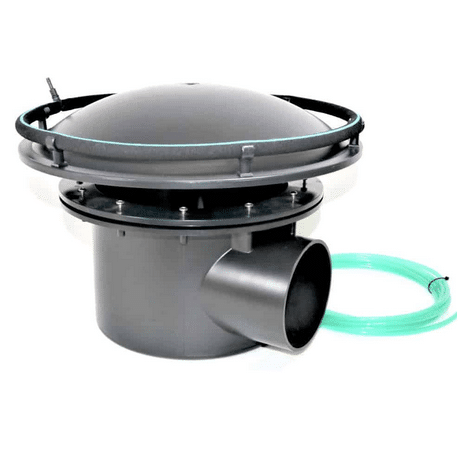

50mm Bottom drain with Ring Aerator

50mm Bottom drain with Ring Aerator

Bottom drain equipment for koi ponds, formal ponds and improved waste removal

50mm Bottom drain with Ring Aerator is a practical pond bottom drain for pond building, filtration and maintenance work. Bottom drains and drain accessories are important parts of a proper koi pond or larger pond build. They allow waste to be drawn from the lowest point of the pond and directed towards suitable filtration, helping reduce dead spots and making the pond easier to keep clean.

This bottom drain product is intended for the lower part of the pond system, where waste removal and circulation are most important. It should be planned before the pond is built wherever possible so the pipe route, valve position and filtration connection are accessible.

The important point with pond pipework is compatibility. A fitting may look simple, but the size, pipe type, pressure rating, thread, bend angle and future access all affect how well the finished system works. Choosing the correct part at this stage helps prevent leaks, reduces unnecessary restriction and makes the pond easier to service later.

For best results, match this product to the pipework already on the pond rather than guessing by eye. Imperial pressure pipe, black waste pipe, flexible hose and rubber fittings are not automatically interchangeable, even when the nominal size sounds similar.

Where this part is normally used

• koi pond builds
• formal pond construction
• bottom drain pipework
• gravity-fed filtration systems
• ponds where waste removal from the base is important

This page is written for real pond use rather than general plumbing only. Pond systems often combine gravity lines, pump-fed lines, waste outlets and service connections in one area, so it is worth planning the layout before gluing, tightening or burying anything permanently.

Choosing the correct size and connection type

Before ordering, check the outside diameter or internal hose size of the pipework you are connecting to. A 2 inch flexible hose connection is not the same thing as a 2 inch imperial pressure pipe fitting, and 110mm waste pipe is different again. If the part uses a BSP thread, check whether the connection is male or female and whether a washer, seal or thread tape is required.

On pump-fed systems, undersized pipework can reduce real flow and increase pressure on the pump. On gravity-fed systems, pipe size and smooth runs are even more important because the system relies on water level difference rather than pump pressure. Larger koi ponds, drum filters and bottom drain lines should be planned with generous pipework wherever possible.

Installation advice

Bottom drain pipework should be planned before construction wherever possible. Keep the pipe route smooth, use suitable valves and leave enough access to isolate the line if maintenance is needed. Aerated bottom drains also need the air line route planned so the airline can be protected and serviced.

Keep future maintenance in mind. A clean installation is not just about hiding pipework; it should also allow valves to be turned, unions to be undone, strainers to be cleaned and equipment to be removed without cutting the system apart. Where a part may need regular access, avoid burying it or boxing it in permanently.

Key benefits

• Helps create a neater and more reliable pond plumbing installation
• Useful for koi ponds and formal ponds where base waste removal is important
• Supports better long term maintenance when the layout is planned correctly
• Helps avoid mismatched fittings, unnecessary restriction and awkward future repairs
• Can be combined with the correct matching pipework, valves, connectors or accessories

Technical details

• Product: 50mm Bottom drain with Ring Aerator
• SKU: AP630
• Type: Pond Bottom Drain
• Typical use: pond base waste removal and circulation
• Plan pipework, valves and access before installation

Helpful related pipework

Use the links below to check compatible parts from the same general plumbing area. These are included to help build the correct pipework layout, not as random add-ons.

• Browse bottom drains
• 110mm Tommy Drain
• Complete 110mm Bottom Drain with Aerated lid
• Pro-Line Aqua 4″ Aerated Bottom Drain
• Spindrifter 4 inch Pressure Bottom Drain for Concrete Ponds
• Tornado AirStorm Aerated Drain 110mm with 40mm Air Feed
• 4 Inch Socket To 110mm Plain Male Converter
• PVC Imperial Pressure Pipe
• ERA Pressure Pipe Ball Valves
• oxygenation and aeration guide for koi ponds

More related parts in this range

These related products are included because they sit in the same pipework or pond plumbing range and are commonly compared when planning a complete installation.

• 110mm Tommy Drain
• 4 Inch Socket To 110mm Plain Male Converter
• Complete 110mm Bottom Drain with Aerated lid
• Complete Bottom Drain with Aeration lid & 25mm

For small fittings, it is worth checking the whole pipe run before ordering so you do not end up missing the joiner, reducer, valve or connector that makes the system serviceable. This is especially important on filter bays where access can become tight once the equipment is installed.

Advice from That Pond Guy

When we specify pond plumbing, we look at the full system rather than a single fitting on its own. Flow rate, pipe diameter, bends, valves, access space and maintenance all matter. If a pond is difficult to isolate or service, even good equipment can become frustrating to maintain. Taking a little longer to choose the correct fitting usually saves time later.

If you are unsure whether this is the correct part, compare it with the related pipework above and check the size of your existing pipe, hose or threaded connection. For new koi pond builds, filter upgrades and more complex plumbing, it is usually worth planning the complete pipe route before placing the order.
