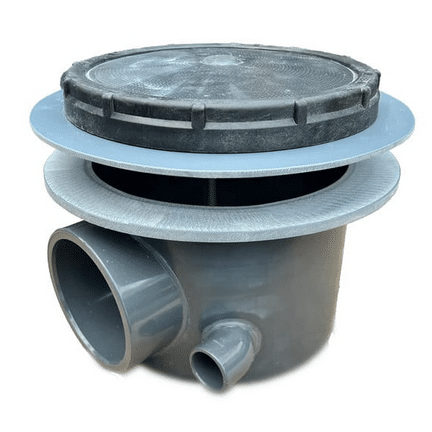

Pro-Line Aqua 4″ Aerated Bottom Drain

Pro-Line Aqua 4 inch Aerated Bottom Drain

4 inch direct air-feed bottom drain for gravity-fed koi pond filtration

The Pro-Line Aqua 4 inch Aerated Bottom Drain is a heavy duty bottom drain for koi ponds and larger fish pond builds where strong waste removal, steady circulation and reliable aeration are important. A bottom drain is one of the most important parts of a serious koi pond because it continuously pulls settled waste from the lowest point of the pond and feeds it towards the filter system.

This model is designed for gravity-fed pond installations and is commonly used with drum filters, settlement systems, sieves and biological filtration. When installed correctly, it helps move heavy solids, uneaten food and fish waste away from the pond floor before they break down and place extra load on the water.

Direct air feed for cleaner installation

The aerated design improves circulation by lifting water from the pond floor towards the surface. This helps create a gentle rolling movement across the pond, drawing debris towards the drain and improving oxygen distribution. The direct 1 inch air feed means air can be supplied through rigid pressure pipe rather than running flexible airline inside the drain body.

That direct air-feed design makes the installation neater and easier to service. The air pipe can be run alongside the main bottom drain pipe back to the filter bay, where it can be connected to a suitable pond air pump. This avoids loose airline sitting inside the drain and gives a more professional koi pond build.

Pipework and installation notes

The main drain outlet is designed for large bore pond plumbing, normally 4 inch pressure pipe on gravity-fed koi ponds. Some installations may also use 110mm pipework with the correct sleeve or adaptor. As with all bottom drains, it is important to plan the pipe route before the pond is built, because the drain and pipework will usually be set into the base structure.

On concrete and fibreglass ponds, the drain should be set securely into the pond base and the flange properly sealed into the finished waterproofing system. On liner ponds, a suitable liner flange or clamping ring may be required depending on the installation method and the drain version supplied. Always check the full installation plan before concreting or fibreglassing around the drain.

Why choose an aerated bottom drain?

• Helps remove settled waste from the pond floor
• Supports strong gravity-fed filtration layouts
• Direct 1 inch air feed for a neat rigid pipe installation
• Improves pond circulation and dissolved oxygen movement
• Useful for koi ponds, formal ponds and larger fish ponds
• Compatible with drum filters, sieves and biological filter systems when correctly plumbed

Technical details

• Product type: aerated bottom drain
• Brand: Pro-Line Aqua
• Main outlet: 4 inch pond drain outlet
• Air feed: direct 1 inch pressure pipe air connection
• Best use: gravity-fed koi pond filtration systems
• Typical filter pairing: drum filter, sieve, settlement or biological filter system
• Installation: pond base / concrete / fibreglass / liner installation depending on setup

Planning advice from That Pond Guy

A bottom drain should be chosen before the pond base is built. The drain position, pipe route, filter level, valve access and air feed all need to be planned together. On most koi ponds, the drain line should run as directly as possible to the filter system with suitable isolation valves and access for future maintenance.

We recommend checking the complete system before ordering, including the filter type, pipe size, air pump, pond depth and whether the build is concrete, liner or fibreglass. A well planned aerated bottom drain makes the whole pond easier to keep clean and helps the filtration system work properly from the lowest point of the pond.

What to plan before installation

Before fitting any bottom drain, decide where the filter system will sit and how the drain line will reach it. Bottom drain pipework should be kept as smooth and direct as possible, with sweeping changes of direction where practical. Sharp bends, undersized pipework or awkward routes can reduce flow and make the system harder to purge or maintain later.

Isolation valves are also important. A gravity-fed drain line should normally have a suitable 4 inch valve in the filter bay so the pipe can be isolated for maintenance. The air line should also be accessible, with the air pump installed in a dry, ventilated position above flood level. Good access makes future servicing much easier.

Helpful bottom drain and pipework links

• PVC Imperial Pressure Pipe
• Evolution Aqua Pressure Pipe Ball Valves
• Valterra Slide Valves
• Pond air pumps
• Bottom drains and drain accessories

If you are building a koi pond from new, the bottom drain, air pipe, filter levels and return pipework should all be planned together. It is far easier to get these details right before concrete, liner or fibreglass work starts than to modify the system later.
