Blagdon Affinity Ice Vent Pond Heater – 50W

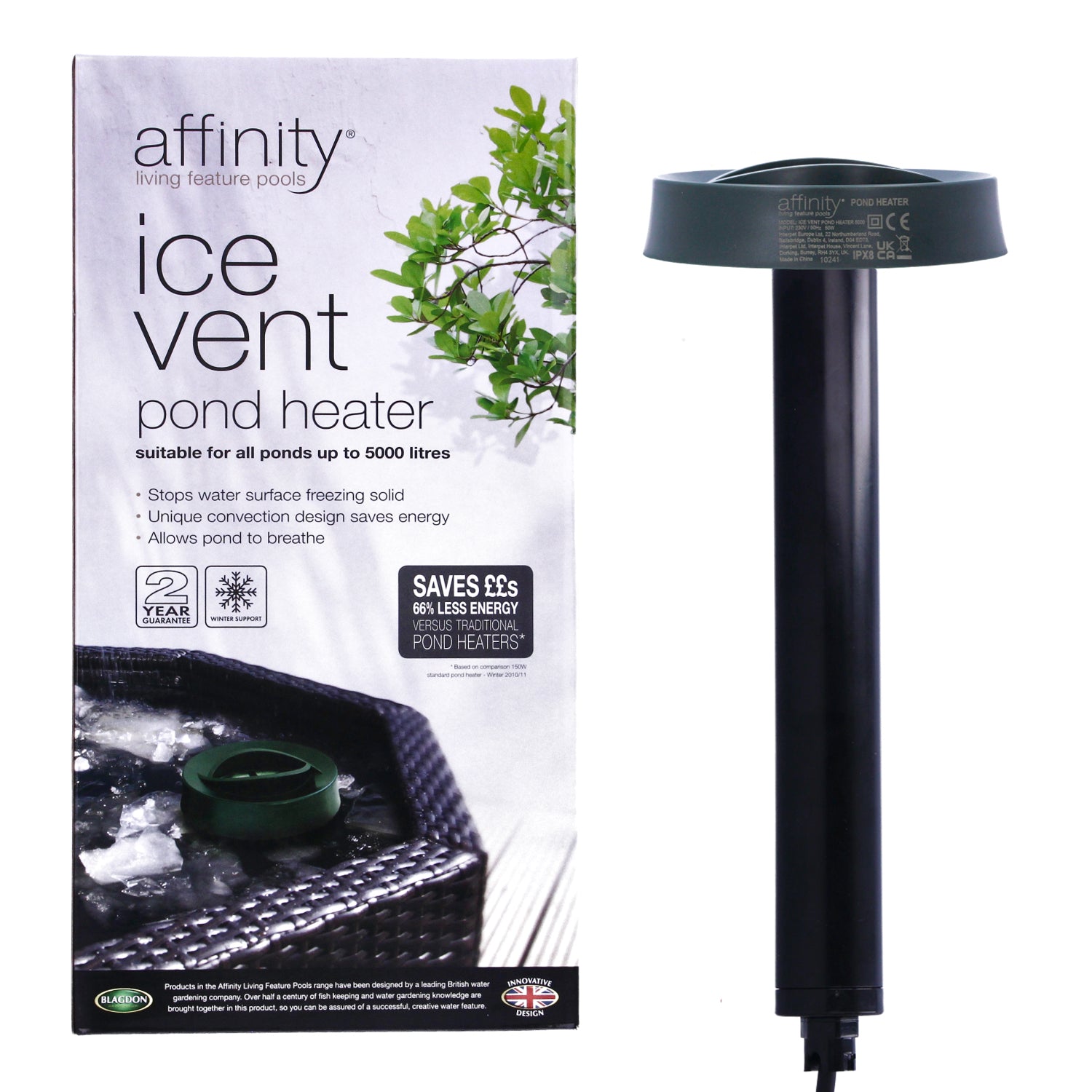

Blagdon Affinity Ice Vent Pond Heater

A compact 50W solution for keeping a small winter breathing hole open

The Blagdon Affinity Ice Vent is a low-energy pond ice preventer designed to maintain a small opening in the surface during freezing weather. That opening lets oxygen enter and allows gases from decaying leaves, fish waste and other organic matter to escape. It is suitable for smaller garden ponds and the Blagdon Affinity raised pools, with one unit normally considered for ponds up to about 5,000 litres.

The convection design concentrates its effect around the floating unit. Choose it for maintaining a local opening, rather than for setting the temperature of the whole pond. Compare the Oase IceFree Thermo 200 if you are considering a different ice-prevention approach.

Key specifications

• Low-energy 50W heating element
• For ponds up to approximately 5,000 litres; use more than one only where the manufacturer guidance and electrical supply allow
• 10m power cable; plug not included
• Manufacturer product code: 1051545

Preparing the pond for winter

Remove heavy leaf deposits before the coldest weather and keep the ice vent clear of dense floating plants. Connect it to a suitable RCD-protected outdoor supply and never leave connectors where they can flood. If the pond does freeze, do not hit the ice or pour boiling water over fish; use a controlled ice-opening method.

For larger or exposed ponds, compare the higher-powered options in our pond heating range. The best choice depends on pond size, depth, shelter and the lowest temperatures normally experienced at the site.

Frequently asked questions

Does it keep the whole pond ice-free?

No. It is intended to maintain a breathing hole around the unit.

Can it be used in a lined pond?

Yes, when installed as instructed and kept clear of damage. The heater should float in the water; do not trap the heated section against the liner.

Is 50W enough for every pond?

No. Its low running cost suits smaller, sheltered ponds. Large, shallow or very exposed ponds may require a higher-output solution.

Planning an Affinity Ice Vent installation

Arrange the outdoor power connection

Blagdon supplies a ten-metre cable without a plug. Plan a suitable weatherproof connection and consult a qualified electrician about the supply and protection. The instructions require an RCD rated at no more than 30mA. Keep the connection accessible for isolation and keep the cable away from places where it can be trapped, cut or become a trip hazard.

Measure the route that the cable must actually follow, including safe routing around the pool, rather than just the straight-line distance to the power point. A raised Affinity pool may have convenient space around its base, but that does not make every nearby connection suitable for outdoors. Make this part of the installation plan before freezing weather arrives.

Understand the energy calculation

At the listed 50W input, one hour of continuous operation uses 0.05kWh. With an illustrative electricity tariff of 25p per kWh, that is approximately 1.25p per hour. A full twenty-four hours at that input would use 1.2kWh and cost 30p. Your tariff and actual operating period determine the bill; this calculation does not include other pond equipment.

Use running cost as one part of the choice. A low electrical rating is attractive, but the product still needs to suit its intended job and the pond. If your goal is maintaining a particular water temperature for koi, budget for a controlled heating system instead. An ice vent and a full pond heater should not be compared as if they deliver the same result.

Use the pond-volume guidance correctly

Blagdon gives suitability for ponds up to 5,000 litres. This is guidance for the ice-vent application. It does not mean that the heater will hold that volume at 12°C, or any other chosen winter temperature. Calculate the pond volume from its actual dimensions and consider the installation’s exposure when selecting winter-care equipment.

A clear distinction is particularly useful when shopping in the wider heating category. An ice preventer is concerned with the surface opening; an in-line heater or heat pump is selected around heat loss and a temperature target. If you are unsure which task your pond needs, tell us the pond size, depth, cover arrangement and intended winter conditions so that we can help narrow the options.

Handle and inspect the unit carefully

Disconnect the supply before installation or maintenance. Keep the heated section away from the liner and do not touch it during operation. Do not lift the unit by its cable. Stop using it if damaged: the manufacturer’s instructions state that a damaged supply cable cannot be replaced. This product is not for swimming pools or water occupied by people.

Check the unit as part of your regular winter pond routine, including after strong wind or a change in water level. Keep its position easy to inspect from the bank and make sure the person looking after the pond knows where to isolate it. Store the instructions with the product details, so that seasonal checks and any future replacement can be based on the correct model.
