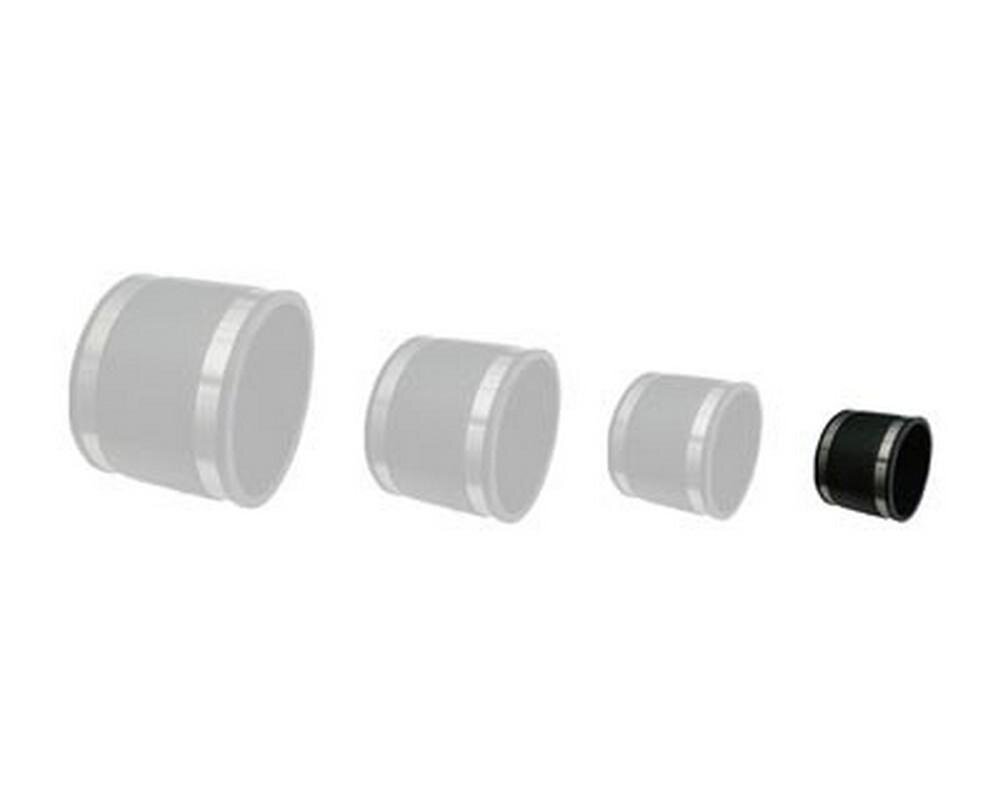

Flexible Rubber Straight Connectors

Flexible Rubber Straight Connectors

Flexible rubber pipe connectors for serviceable pond and filter bay pipework

Flexible Rubber Straight Connectors are practical pond hose fitting for pond building, filtration and maintenance work. Flexible rubber fittings are used where a removable or slightly forgiving pipe connection is needed. They are particularly useful in filter bays, drum filter installations, pump rooms and repair work where rigid solvent weld fittings would make future maintenance more difficult.

This product is used for making a straight connection between compatible pipe sections. It is best used where the pipework needs to continue in a clean line without changing direction. Straight connections are simple parts, but they are important because they affect alignment, leak resistance and how easy the pipe run is to support properly.

The important point with pond pipework is compatibility. A fitting may look simple, but the size, pipe type, pressure rating, thread, bend angle and future access all affect how well the finished system works. Choosing the correct part at this stage helps prevent leaks, reduces unnecessary restriction and makes the pond easier to service later.

For best results, match this product to the pipework already on the pond rather than guessing by eye. Imperial pressure pipe, black waste pipe, flexible hose and rubber fittings are not automatically interchangeable, even when the nominal size sounds similar.

Available sizes and measurements

Flexible Rubber Straight Connectors are selected by nominal pipe size, but the internal and external measurements are important when replacing an existing rubber boot or joining mixed pond pipework. The 6 inch straight connector has been removed from this range, so the listed straight connector sizes now run from 3/4 inch to 4 inch.

Nominal size	External diameter	Internal diameter	Overall length
3/4 inch	40mm	25mm	60mm
1 inch	45mm	35mm	60mm
1.25 inch	50mm	40mm	90mm
1.5 inch	60mm	48mm	90mm
2 inch	70mm	60mm	85mm
3 inch	100mm	87mm	100mm
4 inch	130mm	115mm	100mm

Always measure the outside diameter of the pipe being connected. A nominal pipe size is a useful guide, but it is the actual pipe diameter that determines whether the rubber connector will clamp down properly.

Where this part is normally used

• removable equipment connections
• drum filter and filter bay pipework
• pipe size transitions
• repair work and retrofit jobs
• connections that may need future servicing

This page is written for real pond use rather than general plumbing only. Pond systems often combine gravity lines, pump-fed lines, waste outlets and service connections in one area, so it is worth planning the layout before gluing, tightening or burying anything permanently.

Choosing the correct size and connection type

Before ordering, check the outside diameter or internal hose size of the pipework you are connecting to. A 2 inch flexible hose connection is not the same thing as a 2 inch imperial pressure pipe fitting, and 110mm waste pipe is different again. If the part uses a BSP thread, check whether the connection is male or female and whether a washer, seal or thread tape is required.

On pump-fed systems, undersized pipework can reduce real flow and increase pressure on the pump. On gravity-fed systems, pipe size and smooth runs are even more important because the system relies on water level difference rather than pump pressure. Larger koi ponds, drum filters and bottom drain lines should be planned with generous pipework wherever possible.

Installation advice

Flexible rubber fittings should be fitted onto clean, round pipe ends with enough insertion depth on both sides. Tighten the clamps evenly and leave the fitting accessible for future checking. They are useful for service points, but they should not be used to compensate for badly supported pipework or excessive misalignment.

Keep future maintenance in mind. A clean installation is not just about hiding pipework; it should also allow valves to be turned, unions to be undone, strainers to be cleaned and equipment to be removed without cutting the system apart. Where a part may need regular access, avoid burying it or boxing it in permanently.

Key benefits

• Helps create a neater and more reliable pond plumbing installation
• Useful for koi ponds, garden ponds, filter bays and water circulation systems
• Supports better long term maintenance when the layout is planned correctly
• Helps avoid mismatched fittings, unnecessary restriction and awkward future repairs
• Can be combined with the correct matching pipework, valves, connectors or accessories

Technical details

• Product: Flexible Rubber Straight Connectors
• Type: Pond Hose Fitting
• Available options: 3/4'', 1'', 1.25'', 1.5'', 2'', 3'', 4'', 6''
• Connection style: removable flexible rubber connector
• Tighten clamp bands evenly and keep accessible

Helpful related pipework

Use the links below to check compatible parts from the same general plumbing area. These are included to help build the correct pipework layout, not as random add-ons.

• Browse flexible rubber fittings
• Flexible Rubber 90 Elbows
• Flexible Rubber Tees
• Flexible Rubber Adaptors
• Flexible Rubber Stop End Caps

More related parts in this range

These related products are included because they sit in the same pipework or pond plumbing range and are commonly compared when planning a complete installation.

• Flexible Rubber Adaptors
• Flexible Rubber Stop End Caps
• Flexible Rubber Tees
• Oase Titanium 30000 Rubber Connector

For small fittings, it is worth checking the whole pipe run before ordering so you do not end up missing the joiner, reducer, valve or connector that makes the system serviceable. This is especially important on filter bays where access can become tight once the equipment is installed.

Advice from That Pond Guy

When we specify pond plumbing, we look at the full system rather than a single fitting on its own. Flow rate, pipe diameter, bends, valves, access space and maintenance all matter. If a pond is difficult to isolate or service, even good equipment can become frustrating to maintain. Taking a little longer to choose the correct fitting usually saves time later.

If you are unsure whether this is the correct part, compare it with the related pipework above and check the size of your existing pipe, hose or threaded connection. For new koi pond builds, filter upgrades and more complex plumbing, it is usually worth planning the complete pipe route before placing the order.
