Oase LunAqua Connect Pond Lighting
Build Your Own Custom Pond & Garden Lighting System
The Oase LunAqua Connect system is a flexible and professional lighting solution designed for ponds, waterfalls, and garden landscapes. Unlike traditional fixed lighting kits, this system allows you to build your own fully customised setup using a simple plug and play design.
Whether you are looking to softly highlight a pond edge, illuminate a waterfall, or create a striking feature with colour changing lighting, LunAqua Connect gives you complete control. Running on a safe 24V low voltage system, it is ideal for use around water and planting, while also being easy to expand as your garden develops.
This is a system designed to grow with you. Start with a small setup and add more lights, cables, or accessories over time without needing to replace everything.
A Fully Modular Lighting System
Build Your Setup Step by Step
One of the biggest advantages of LunAqua Connect is that you are not restricted to a single kit. Instead, you build your system based on your layout, choosing only the components you need.
If you are unsure where to start, follow the steps below to build your setup properly.
Step 1: Choose Your Power Supply
Every system starts with a power supply.
You can choose from either a 36W or 60W LunAqua Connect transformer, depending on how many lights you plan to run. Simply add up the wattage of each light and keep within the limit of your chosen unit.
36W power supply
Up to 14 x S lights, Up to 9 x M lights, Up to 5 x L lights, Up to 4 x RGB lights
60W power supply
Up to 24 x S lights, Up to 15 x M lights, Up to 9 x L lights, Up to 8 x RGB lights
You can mix different lights together, as long as the total wattage stays within the limit.
If you are planning to expand in future, it is usually worth starting with the 60W option.
Browse power supplies:
36W Power Supply
60W Power Supply
Step 2: Add Smart Control
If you want full control over your lighting, you will need to add the LunAqua Connect controller.
When paired with the Oase Switch App, this allows you to control brightness, set timers, and adjust RGB colours directly from your phone.
Without the controller, the lights will simply switch on and off at the mains. With it, you unlock the full functionality of the system.
View controller:
LunAqua Connect Controller Easy Switch
Step 3: Plan Your Layout with Distributors
If you are installing more than one light, you will usually need a 3 way distributor to split the system.
It is important to choose the correct type:
- White 3 Way Distributor for warm white lighting systems
- RGB 3 Way Distributor for colour changing lighting systems
These are not interchangeable, so always match the distributor to the type of lights you are using.
Step 4: Select Your Spotlights
Now choose your lights based on what you want to highlight.
Warm white spotlights are available in three sizes:

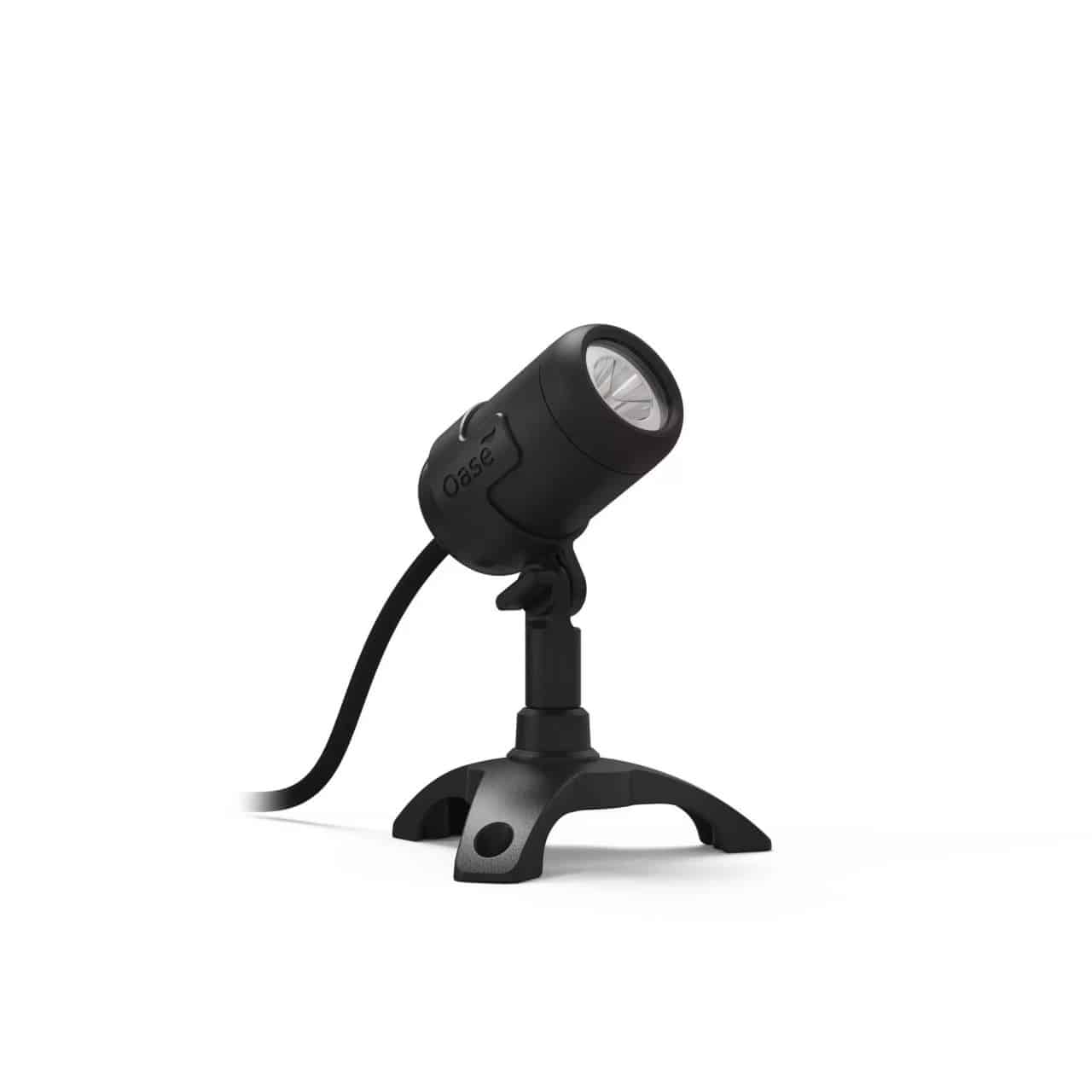

- White S Spotlights for small features and edging
- White M Spotlights for shrubs, pond features and focal points
- White L Spotlights for larger trees and stronger illumination
RGB M Spotlights allow you to introduce colour changing effects, perfect for feature lighting or creating a more modern look.
You can mix warm white and RGB lights within the same system, as long as you stay within your power supply limit.
Step 5: Add the Correct Extension Cables
Once you have planned your layout, you will need extension cables to connect everything together.
These must match your lighting type:
- White cables for warm white systems
- RGB cables for colour changing systems
They are available in two formats, and choosing the right one can make a big difference to how clean and efficient your setup is:
5 metre extension cables
These are single run cables, ideal for extending from one point to another or linking individual components together.
10 metre cables with 3 connection points
These allow you to run one main cable and connect up to three lights along its length. This is often the better option for pond edges or borders, as it reduces the need for additional distributors and keeps wiring much tidier.
The total cable run across your system can be up to 100 metres from the power supply to the final light.
View cables:
White 5m Extension Cable
White 10m Cable with 3 Connectors
RGB 5m Extension Cable
RGB 10m Cable with 3 Connectors
Not Sure Where to Start?
If you would prefer a simpler option, ready made kits are also available.
These are ideal if you want a quick and easy setup without having to build everything from scratch.
Shop starter kits:
LunAqua Connect Starter Set Controllable
LunAqua Connect S Set 3 White
LunAqua Connect M Set 3 White
Why Buy From That Pond Guy
Getting pond lighting right is not just about choosing products, it is about knowing how to use them properly.
At That Pond Guy, we use and install systems like LunAqua Connect regularly, so we understand how to get the best results from them. From choosing the right light output to planning cable runs and positioning, we can help you avoid common mistakes and get a much better end result.
If you are unsure what you need, we are always happy to help you plan your setup properly. That way you get a system that works first time and looks exactly how you want it to.
Oase LunAqua Connect – Frequently Asked Questions
The Oase LunAqua Connect system is designed to give you full flexibility when creating a custom pond and garden lighting setup. Below are the most common questions customers ask when planning their installation.
What is Oase LunAqua Connect?
Oase LunAqua Connect is a modular 24V LED lighting system designed for ponds, waterfalls, and garden landscapes. Instead of buying a fixed kit, you build your own system using compatible components such as power supplies, controllers, spotlights, distributors, and extension cables. This allows you to create a fully customised lighting setup that suits your exact layout.
Is LunAqua Connect suitable for underwater use?
Yes, the spotlights in the LunAqua Connect range are rated IP68, meaning they are fully waterproof and designed for permanent underwater use. They are ideal for ponds, streams, and waterfalls where reliable submerged lighting is required.
What power supply should I choose?
The choice between a 36W and 60W power supply depends on the total wattage of the lights you plan to install. You simply add together the wattage of each spotlight and ensure the total does not exceed the capacity of the transformer. If you are unsure or planning to expand later, the 60W option is usually the better choice.
Can I mix different types of lights in one system?
Yes, you can mix different sizes of warm white lights and RGB colour changing lights within the same system. The only restriction is that the combined wattage must stay within the limit of your chosen power supply.
What is the difference between warm white and RGB lighting?
Warm white lighting provides a natural, clean look that enhances the true colours of fish, stonework, and planting. RGB lighting allows you to change colours and create more dramatic or decorative effects. Most pond setups use warm white as the base and add RGB lighting as an accent.
Do I need a controller to use LunAqua Connect?
No, the system will work without a controller, but it will only switch on and off at the mains. Adding the controller allows you to dim lights, set timers, and control RGB colours through the Oase Switch App, which significantly improves usability.
How does the LunAqua Connect system connect together?
All components connect using a simple screw together system with waterproof fittings. The layout typically starts with the power supply, followed by the controller if used, then distributors and extension cables, and finally the spotlights. This plug and play design makes installation straightforward and reliable.
What is a 3 way distributor and when do I need one?
A 3 way distributor allows you to split the system and run multiple lights from a single connection point. If you are installing more than one spotlight, you will almost always need at least one distributor. There are separate versions for white and RGB systems, and they must match your lighting type.
Are white and RGB components interchangeable?
No, white and RGB components use different connection types and are not interchangeable. This applies to distributors and extension cables as well as the lights themselves, so it is important to keep your system consistent.
What extension cables do I need?
You will need extension cables to connect your system and position lights where you want them. These must match your lighting type, either white or RGB. You can choose between standard 5 metre cables or 10 metre cables with multiple connection points depending on your layout.
What is the benefit of the 10 metre cable with 3 connectors?
The 10 metre cable with built in connection points allows you to connect multiple lights along a single cable run. This reduces the need for extra distributors and helps keep the installation cleaner and more efficient, especially around pond edges or borders.
How far can I run LunAqua Connect cables?
The total cable length from the power supply to the final light can be up to 100 metres. Staying within this limit ensures stable performance and consistent light output across the system.
Can LunAqua Connect be expanded later?
Yes, one of the main advantages of the system is that it is fully expandable. You can start with a small number of lights and add more over time by increasing cable runs, adding distributors, or upgrading your power supply if needed.
Is LunAqua Connect suitable for koi ponds?
Yes, it is ideal for koi ponds. The lighting provides clear visibility without generating excessive heat, and the high quality LED output helps bring out the natural colours of the fish, especially when using warm white lighting.
How bright are the LunAqua Connect lights?
Brightness depends on the model you choose. Smaller lights are designed for subtle accent lighting, while larger models provide stronger illumination for trees, features, or deeper ponds. Choosing the right size is important to achieve the desired effect.
What size spotlight should I choose?
Smaller S lights are best for edging and low level detail, M lights are suitable for most pond features and planting, and L lights are designed for larger focal points such as trees or structures. The choice depends on what you are trying to highlight and the distance from the subject.
Can I install LunAqua Connect myself?
Yes, the system is designed to be installed without specialist tools or electrical knowledge. The plug and play connections make it straightforward for most homeowners to install, although larger or more complex layouts may benefit from some planning beforehand.
Where should I position pond lights?
Lights are usually positioned to highlight key features such as waterfalls, planting, or fish viewing areas. Angling lights slightly upwards or across a feature often produces a better effect than pointing them directly downwards.
Can LunAqua Connect be used outside of ponds?
Yes, the system is designed for both underwater and garden use. It works equally well for lighting pathways, planting beds, trees, and architectural features, making it a versatile garden lighting solution.
Are LunAqua Connect lights energy efficient?
Yes, the system uses modern LED technology, which is highly energy efficient compared to older lighting systems. This allows you to run multiple lights without significantly increasing energy consumption.
Are all parts of the LunAqua Connect system waterproof?
No, not all components are designed to be fully submerged. The spotlights are rated IP68, meaning they are suitable for permanent underwater use. Cables and connectors are rated IP67, which makes them weatherproof and suitable for burial or temporary water exposure, but they should not be permanently underwater. The controller and power supply are designed for outdoor use but must be installed above ground and kept out of water.
Can the connectors go underwater?
While the connectors are high quality and weatherproof, they are not designed for permanent submersion. It is always best to position connections out of the pond itself, either buried in dry ground or hidden within landscaping, to ensure long term reliability.
Where should I install the power supply?
The power supply should be installed in a dry, protected location such as inside a weatherproof box or sheltered outdoor socket area. Although it is rated for outdoor use, it must never be placed in water or exposed to constant moisture.
Does the controller need to be protected from the weather?
Yes, the controller is splash resistant but not fully waterproof. It should be mounted above ground in a protected position such as on a wall, post, or inside a suitable enclosure to prevent water ingress over time.
Is LunAqua Connect safe to use around children and pets?
Yes, the system operates on a 24V low voltage supply, which is considered safe for use around ponds, swim ponds, and garden environments where children or pets are present.
Can I install LunAqua Connect in a swimming pond?
Yes, the low voltage design makes it suitable for swim ponds. The fully submersible spotlights can be safely installed underwater, provided all other components are positioned correctly outside of the water.
Will the lights affect fish or wildlife?
No, the lights are safe for fish and pond wildlife. In fact, warm white lighting can enhance fish visibility without causing harm. As with any lighting, it is best to avoid excessive brightness or constant illumination overnight in wildlife ponds.
How long do LunAqua Connect LED lights last?
LED lights in the LunAqua Connect range are designed for long life, typically lasting many thousands of hours. This makes them a reliable long term solution with minimal maintenance compared to older halogen systems.
Do the lights get hot?
No, LED technology produces very little heat compared to traditional lighting. This makes them safe for use in ponds and around plants without risk of damage or overheating.
Can I leave the lights on all night?
Yes, the lights can be left on continuously if required. However, many users prefer to use the controller and app to set timers so the lights switch off automatically, saving energy and extending lifespan.
Can I dim LunAqua Connect lights?
Yes, dimming is possible when using the controller with the Oase Switch App. This allows you to adjust brightness levels to suit different times of day or desired effects.
Can I control different lights separately?
Yes, the system allows for multiple lighting zones. You can control separate groups of warm white lights independently, as well as manage RGB lights as a group through the controller.
Does the system work without the app?
Yes, the system will still function without the app, but only as a simple on and off setup. To access dimming, timers, and colour control, the app and controller are required.
What is the range of the app control?
The app typically connects via Bluetooth, with a usable range of around 40 metres depending on surroundings. Walls, structures, and interference can affect this range slightly.
Can I install the system in stages?
Yes, the system is designed specifically for staged installation. You can install a basic setup initially and then add more lights, cables, and accessories over time as your garden develops.
What happens if I exceed the power supply limit?
If you exceed the wattage capacity of your power supply, the system may not function correctly and could overload. It is important to calculate your total wattage carefully before installation.
Can I upgrade from a 36W to a 60W system later?
Yes, you can upgrade your power supply at any time. This is a common approach if you start with a smaller system and later decide to expand your lighting setup.
Are LunAqua Connect lights suitable for large gardens?
Yes, the system is ideal for both small and large gardens. With cable runs up to 100 metres and expandable components, it can easily be adapted for larger landscapes.
What is the best way to plan a lighting layout?
Start by identifying key features you want to highlight, such as waterfalls, planting areas, or seating spaces. Then choose appropriate light sizes and plan cable routes to minimise visible wiring and reduce the need for excessive connectors or distributors.
What are the most common mistakes when installing pond lighting?
Common mistakes include choosing the wrong power supply, mixing incompatible components, placing connectors underwater, and not planning cable routes properly. Taking time to plan the system before purchasing will help avoid these issues and result in a much better final setup.
How do I build an Oase LunAqua Connect system?
To build a LunAqua Connect system, start with a 24V power supply, then add a controller if you want app control. From there, connect distributors if needed, choose your spotlights, and link everything together using compatible extension cables. Always ensure the total wattage of your lights stays within the power supply limit.
What do I need for a complete LunAqua Connect setup?
A complete system typically includes a power supply, optional controller, spotlights, extension cables, and often a 3 way distributor. The exact combination depends on your layout and how many lights you plan to install.
Can I mix white and RGB lights in LunAqua Connect?
Yes, you can mix warm white and RGB lights within the same system. However, you must use the correct cables and distributors for each type, and ensure the total wattage does not exceed your power supply capacity.
What is the best lighting for a koi pond at night?
Warm white LED lighting is generally the best option for koi ponds, as it provides clear, natural illumination that enhances fish colour and visibility. RGB lighting can be added as an accent but is usually not used as the main light source.
How do I calculate how many pond lights I need?
Start by identifying the key features you want to highlight, then choose light sizes based on distance and brightness requirements. Add up the wattage of each light to ensure it stays within your power supply limit. Most ponds benefit from a mix of small and medium lights rather than relying on a single large unit.
Are Oase LunAqua Connect lights good for waterfalls?
Yes, they are ideal for waterfalls. Positioning lights at the base or behind falling water creates depth and movement, especially when using warm white for a natural look or RGB for a more dramatic effect.
Can pond lighting be left on all night?
Yes, pond lighting can be left on overnight, but many users prefer to set timers using the controller. This helps reduce energy use and avoids unnecessary light exposure for fish and wildlife.
How deep can LunAqua Connect lights be installed?
The spotlights are designed for underwater use and can typically be installed up to 1 metre deep. They are fully sealed and built for permanent submersion in pond environments.
Do I need an electrician to install pond lighting?
In most cases, no. LunAqua Connect uses a plug and play 24V system, which is safe and simple to install. However, if you are unsure or working with mains power connections, professional advice is always recommended.
What is the advantage of a modular pond lighting system?
A modular system allows you to start small and expand over time without replacing your existing setup. You can add more lights, extend cables, or upgrade components as your garden develops, making it a flexible and future proof solution.
What is the maximum cable length for LunAqua Connect?
The total cable run from the power supply to the final light should not exceed 100 metres. Staying within this limit ensures stable voltage and consistent light output across the system.
Can I install pond lights around the edge instead of underwater?
Yes, pond lights can be installed above ground around the pond edge or within planting areas. This is often used to create subtle lighting effects without placing all lights underwater.
Why are my pond lights not as bright as expected?
This is usually due to incorrect light selection, excessive cable length, or exceeding the power supply capacity. Choosing the right size spotlight and ensuring proper system design will resolve most brightness issues.
Is it better to use multiple small lights or one large light?
In most cases, multiple smaller lights provide a better result. They allow you to highlight different areas evenly and create a more natural look compared to a single strong light source.
How do I hide pond lighting cables?
Cables can be buried underground, hidden behind rocks, or concealed within planting areas. Using longer cables with built in connection points can also reduce the number of visible joins and improve the overall finish.
Can I upgrade my pond lighting system later?
Yes, LunAqua Connect is designed to be upgraded. You can add more lights, extend cable runs, or switch to a higher capacity power supply as your needs change.
What is the difference between pond lights and garden lights?
Pond lights are specifically designed to be waterproof and safe for underwater use, while standard garden lights are not. LunAqua Connect is designed to work in both environments, making it more versatile.
Do LED pond lights save energy?
Yes, LED pond lights are highly energy efficient compared to traditional lighting. They use significantly less power while providing strong and reliable illumination.
Can I use LunAqua Connect for trees and landscaping?
Yes, the system is suitable for full garden use, including lighting trees, shrubs, pathways, and structures. Different spotlight sizes allow you to match the light output to the feature you are highlighting.
How do I get the best effect from pond lighting?
The best results come from careful placement and layering of light. Use a combination of underwater and above ground lighting, avoid placing all lights in one area, and angle lights to highlight movement and texture rather than pointing them directly downward.
